Field Strength Estimator

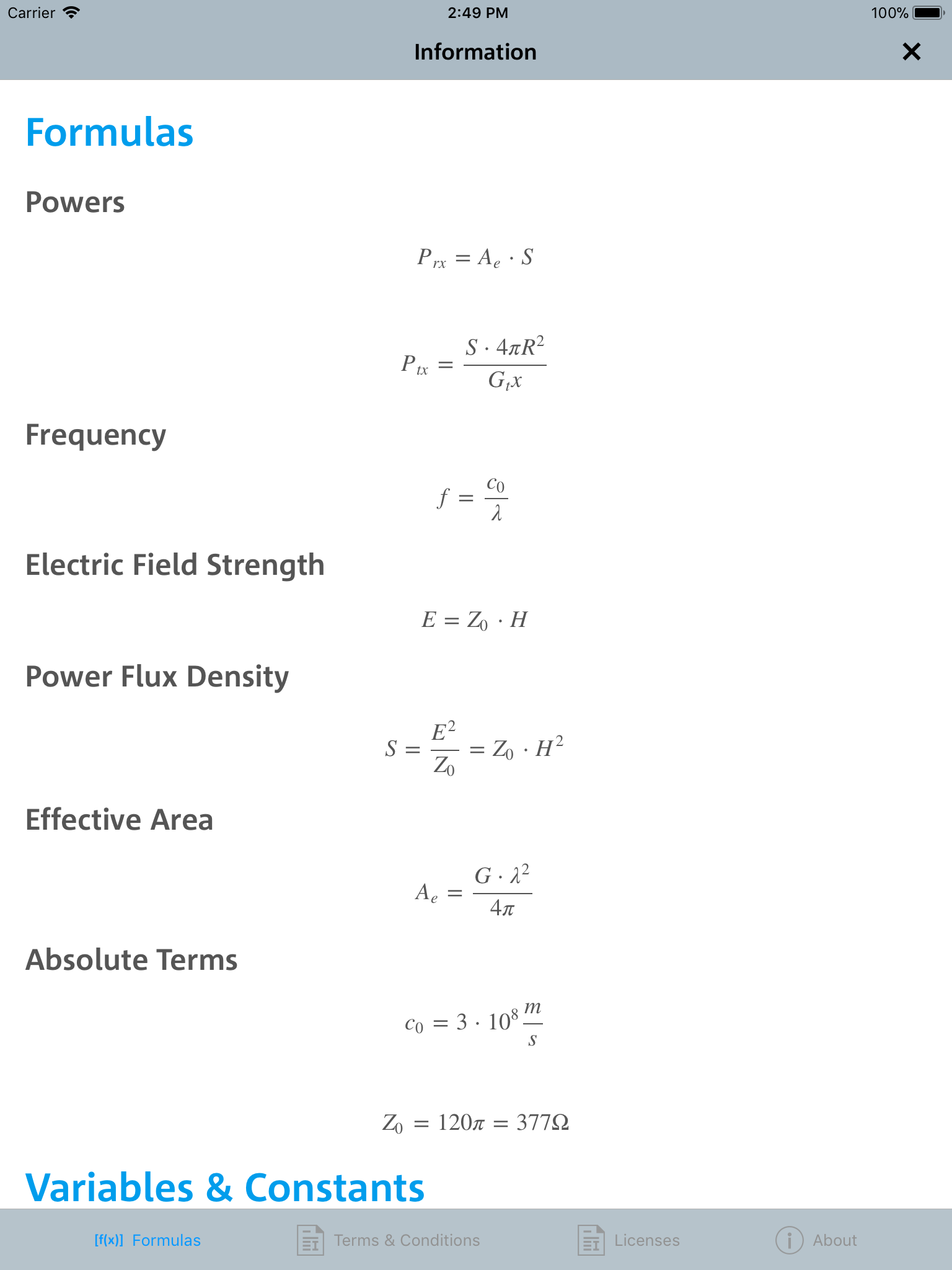

The program Field Strength and Power Estimator calculates power flux density, electric and magnetic field strength from the transmitted power, associated frequency and gain of the transmitting antenna. Additionally the input power into a receiver with 50 Ohm input impedance is calculated from the gain of the receiving antenna. The program automatically converts power flux density into electric and magnetic field strength. Depending on the transmitted frequency, various parameters influence the received power and field strength, such as non-line-of-sight propagation, changes in polarisation, reflections, and multi-path propagation affect the true values. Additionally antenna VSWR and cable losses have to be considered.

The program Field Strength and Power Estimator does not consider these impairments. It assumes conditions, that are close to the best possible theoretical values. This is why we say the program is an Estimator, not a Calculator.

This application is based on the application note:

"1MA85: Field Strength and Power Estimator"

by Rohde & Schwarz GmbH & Co. KG

( http://www.rohde-schwarz.com/appnote/1MA85 )
