DM Editor

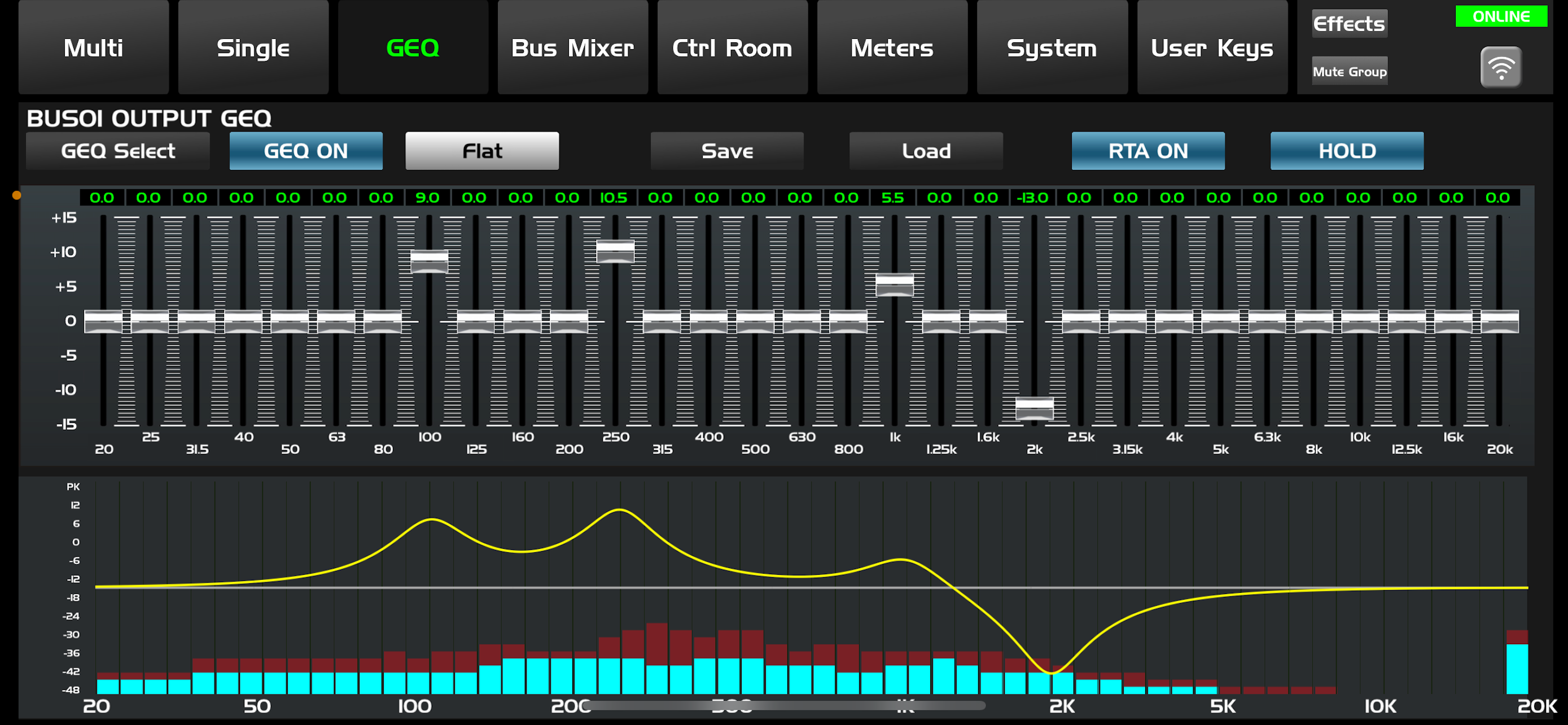

DMEditor APP controls devices via WiFi or Bluetooth. Devices controlled by WiFi include DM48.20, DM24.12, DM20.12, and DMC16.6. The only device controlled by Bluetooth is DMC16.6. The main functions of DM48.20 are as follows:

1. 32 XLR analog inputs with digital gain control 2. up to 32 Digital inputs
2. 16 XLR mix bus outputs
3. Main and CTRL L/R Outputs
4. AES stereo digital output
5. +48V phantom power
6. All channels Control Room outputs
7. All channels headphones output
8. USB key for stereo recording/playback , Presets save/load and firmware update
9. Ethernet port firmware update interface, can be used to connect iPad remote control APP – Multiple app support
10. Up to 4 stereo internal FX processors
11. 17 precision motorized 100mm faders
12. 32 bit floating point digital signal processing
13. 10.1 inch color LCD touch screen for graphical view and setup
14. Two-color LCD displaying channel information
15. 24-bit/48 / 96KHz sampling rate
16. Up to 48 DSP processing channels
17. Program, save, load & copy functions
18. Digital noise gate
19. Digital compressor/limiter
20. Digital 4-band full parametric EQ
21. PAN
22. Phase reverse
23. Time delay
24. 8 DCA for fader /mute group 26. Authority management
25. AutoMix
26. RTA
27. FBC
28. User defined Buttons 31. Talkback / Mic input 32. Lamp socket Optional Features
29. T-32 DANTE network audio interface, field installable
