Vibration Pro

All-new in 5.0: redesigned interface, color-coded channels, drag-cursor readouts, and PDF reports. The industrial FFT analyzer, reimagined.

Vibration Pro turns your iPhone or iPad into a precision FFT vibration spectrum analyzer — a portable, professional-grade alternative to a benchtop analyzer for predictive maintenance, machinery diagnostics, and vibration research.

Version 5.00 is a complete visual redesign: a modern, color-coded interface built around the way vibration technicians actually work, with clean, uncluttered screens for every channel and setting, a drag-cursor readout for reading exact values on any plot, and a crisp new PDF report you can generate and share in seconds.

MEASURE FROM ANYWHERE

• Built-in 3-axis accelerometer and gyroscope — no extra hardware required
• Built-in microphone input for acoustic vibration analysis

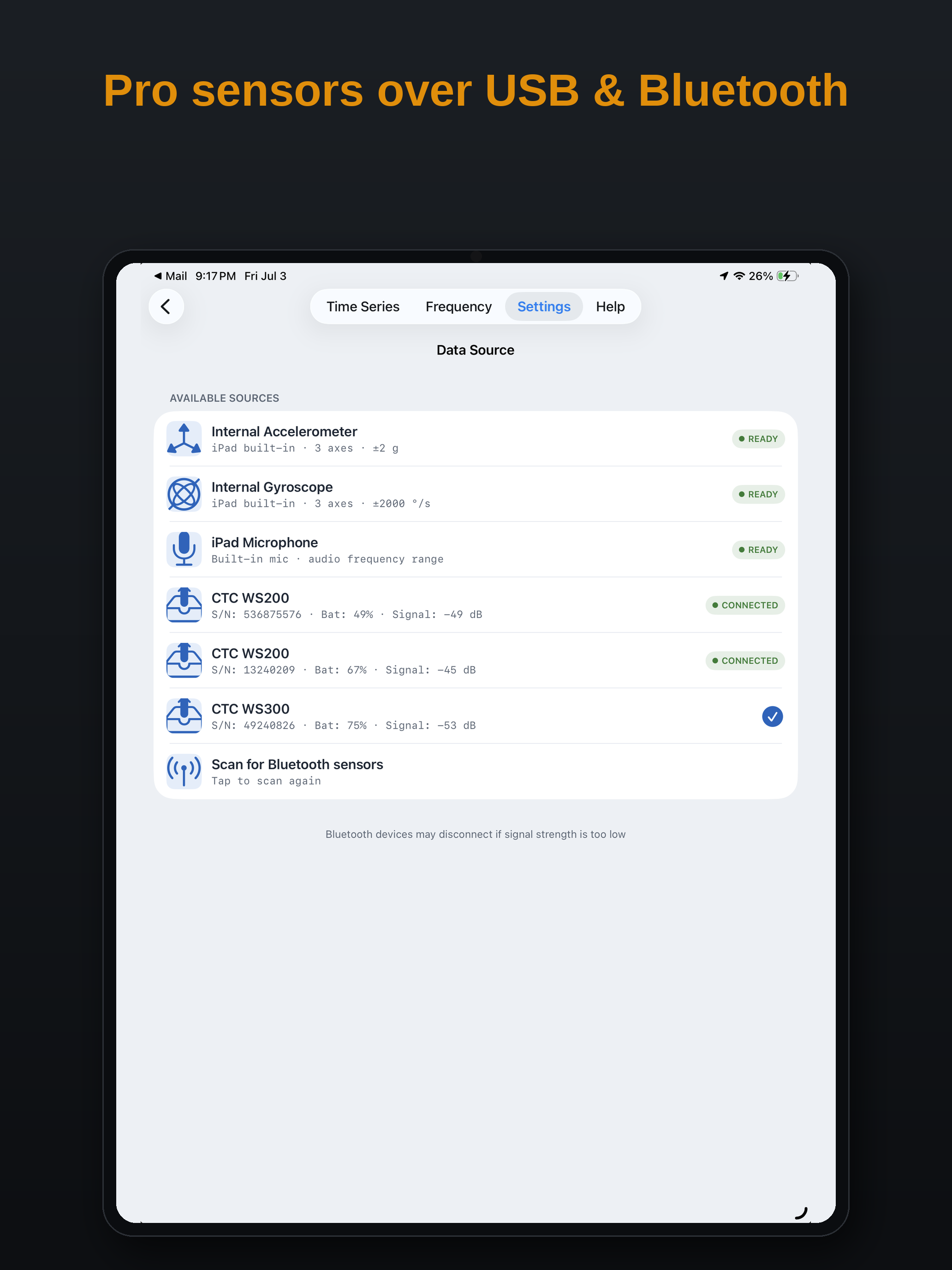

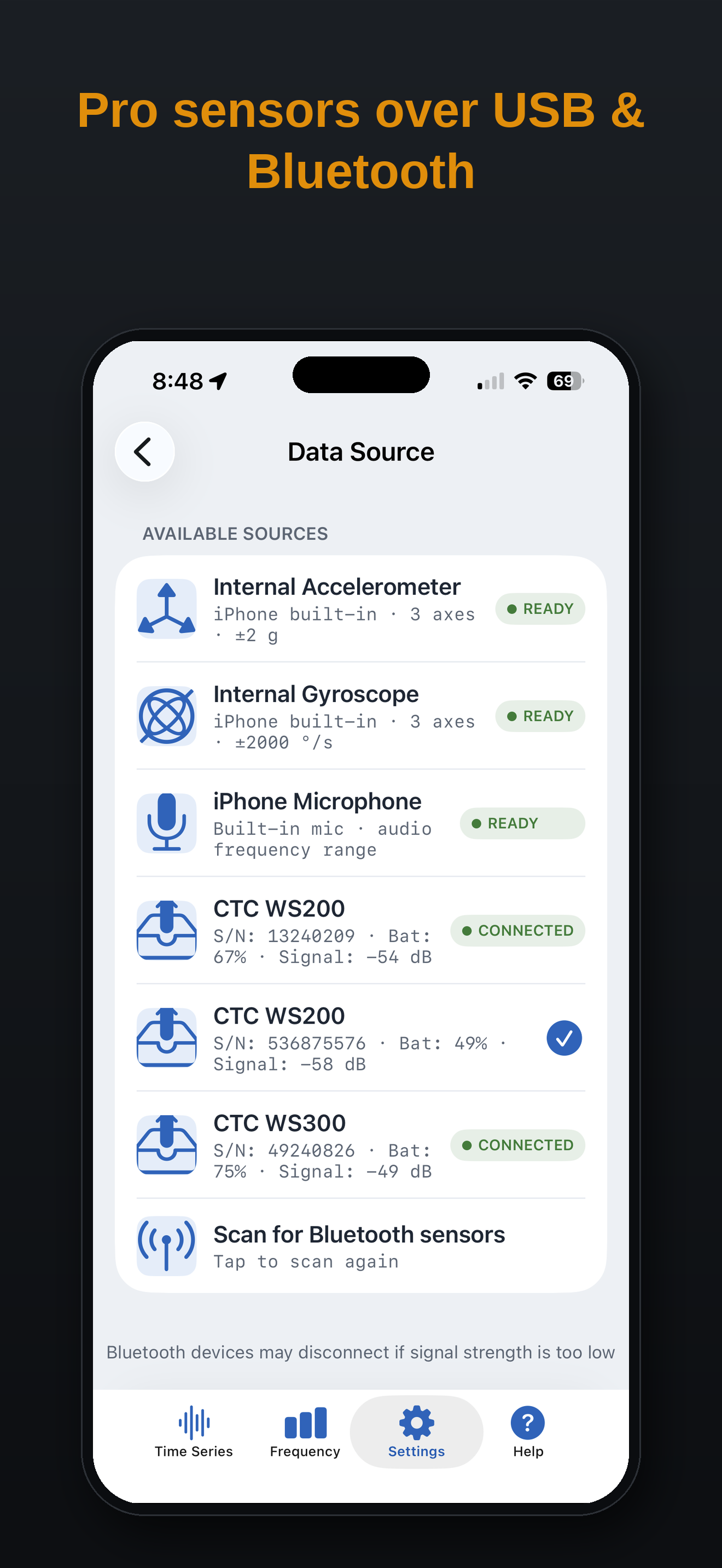

• Full support for the Digiducer family of professional USB accelerometers (333D01, 333D04, 633A01, 435B39) and The Modal Shop 485B39 two-channel USB input module — mount the sensor on the machine instead of your phone or iPad, for a wider dynamic range and to keep your device off hot, dirty, or vibrating equipment
• CTC WS200 and WS300 Bluetooth wireless accelerometers
• Sabrent USB input/output dongle support

ANALYZE LIKE A BENCH-TOP SPECTRUM ANALYZER

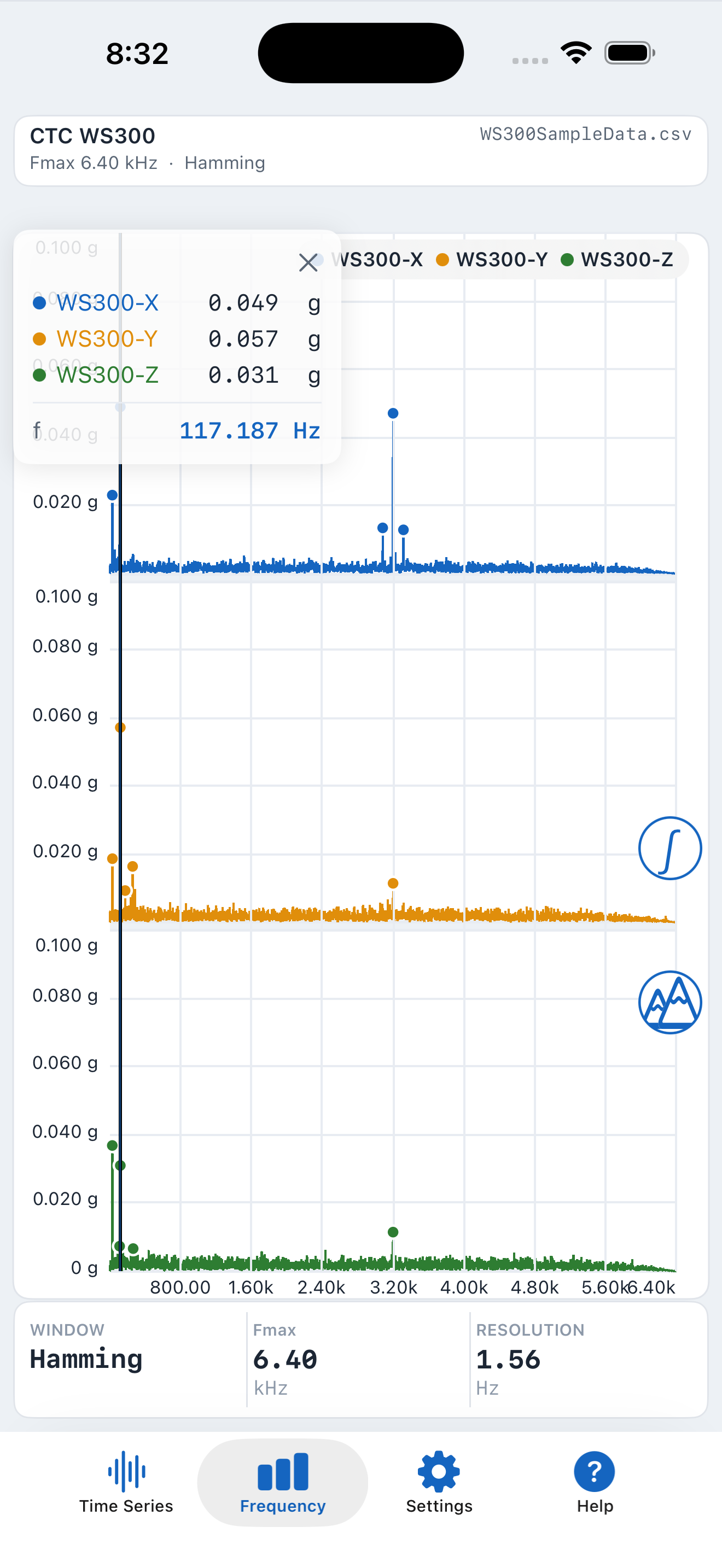

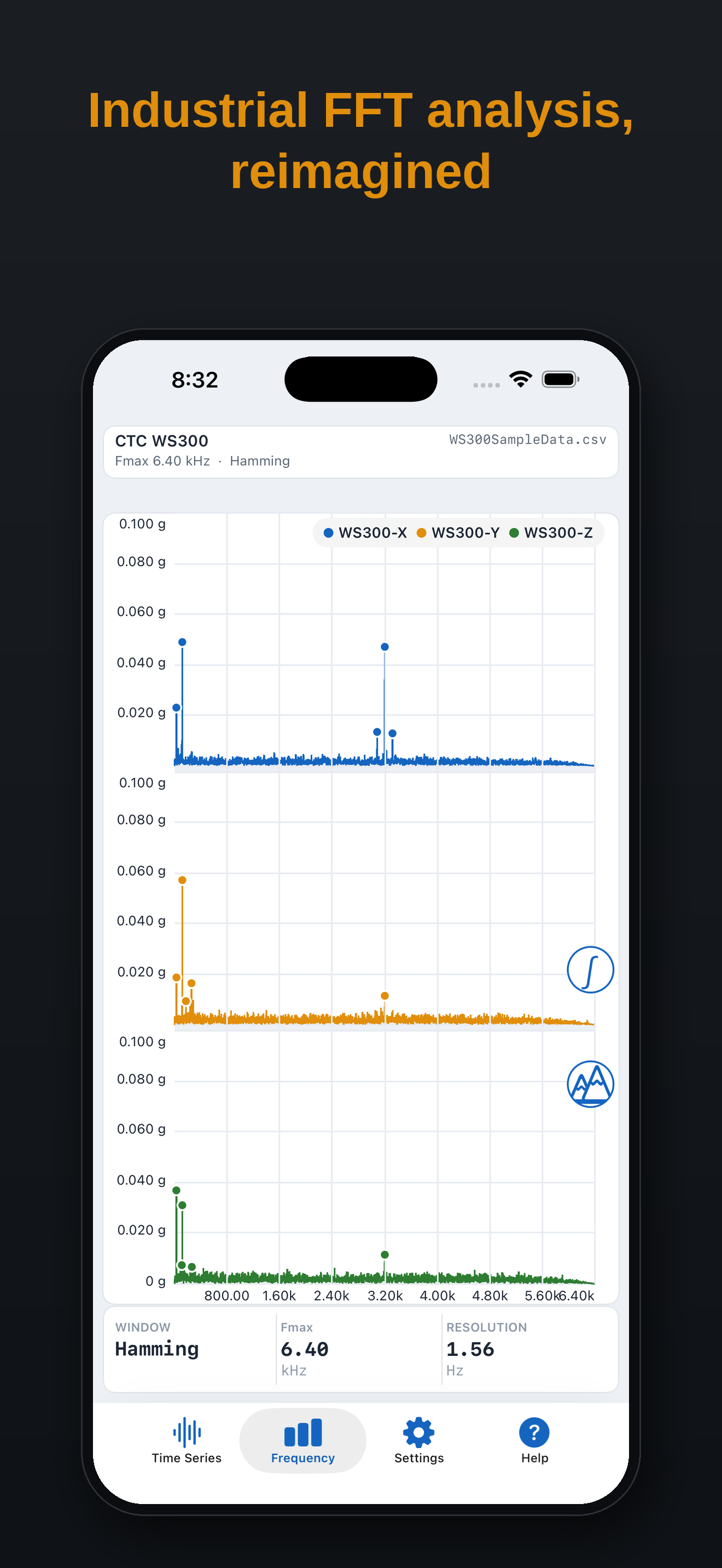

• Time series and FFT frequency spectrum on every channel, with adjustable sample rate, sample length, and start delay
• Linear-Linear, Log-Log, Log-Linear, and Linear-Log frequency display modes
• Hamming, Hanning, and Flattop windowing
• Integrate and differentiate in the frequency domain (acceleration ↔ velocity ↔ displacement)
• RMS and peak levels per channel and combined
• Frequency averaging and peak hold
• Color-coded peaks list with the top 5 peaks per channel
• Tap-and-drag cursor readout in portrait or landscape, with magnetic snap to peaks
• Adjustable frequency alarm limits

BUILT FOR THE FIELD

• Trigger acquisitions from any channel or the microphone
• Auto-repeat and auto-save for long-duration monitoring
• Machine Menu — organize test scripts into a visual menu by machine
• Save and load complete instrument settings
• Full scripting language (subscription) to guide technicians step-by-step through repeatable, multi-point test procedures

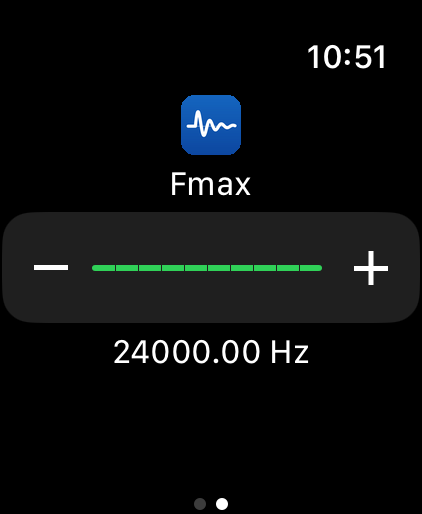

• Apple Watch companion app to trigger and monitor acquisitions

DOCUMENT YOUR RESULTS

• New crisp PDF report — identical on iPhone and iPad — with time series and frequency plots, acquisition and sensor details, and a full peaks table
• Email data and reports directly from the app, or save locally and transfer with the Files app
• Open, non-proprietary format — captures save as plain CSV with full-precision time and frequency data, ready to reload in the app or analyze in Excel, MATLAB, or Python
• Automatic reverse-geocoded job location

In predictive maintenance applications, Vibration Pro helps identify bearing defects, shaft misalignment, imbalance, and structural resonant frequencies — and is equally useful for monitoring material handling and part-handling equipment, structural testing, and general machinery diagnostics.

Scripting is available through an auto-renewing monthly or annual subscription, which can be managed or canceled at any time in your App Store account settings.
