Psychrometry Chart

Psychrometric chart application featuring ISO-7730 thermal comfort calculations, supporting both SI and imperial unit systems

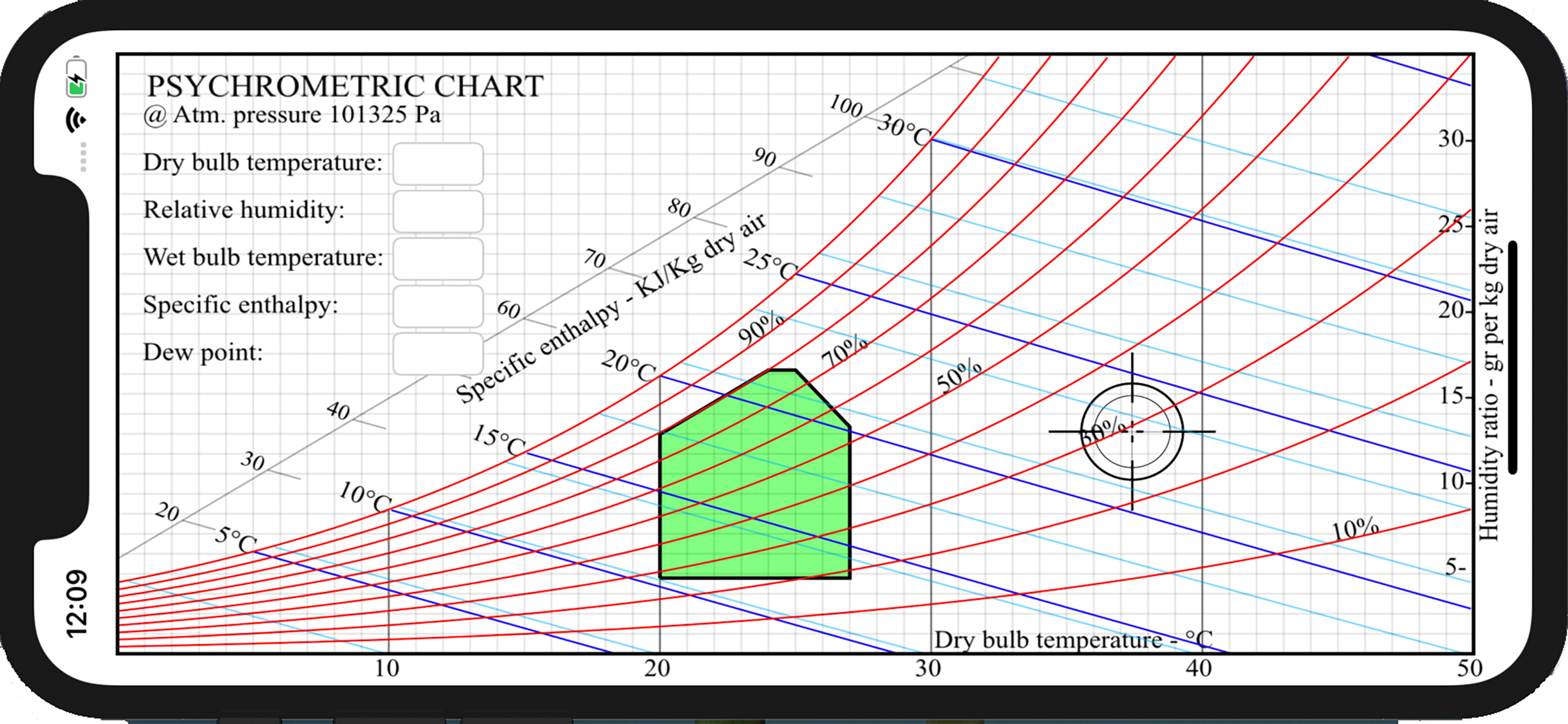

The application is a psychrometric chart. It accurately calculates and displays relevant thermodynamic air & water vapour mixture properties. Supports both SI and imperial unit systems By sliding the reticle within the graph the properties values for each corresponding graph point are instantly updated and displayed in the respective fields. In particular the following properties are shown: Dry-bulb temperature, Relative humidity, Wet bulb temperature, Specific enthalpy & Dew point. Additionally ISO-7730 PMV/PPD thermal comfort parameters are calculated.
