Process Engineer Toolbox

Size your project at a glance. With this application, you can estimate pipe, vessel and tank sizes as well as pump main parameters.

Were you put in a situation before where you needed to perform a quick calculation or a rough estimate of a pipe or equipment but you were away from your computer? If this was the case, this app will do this job for you.

This app covers the following process/chemical calculations:

1. Line sizing
2. Pump Hydraulics
3. Gas Liquid Vertical Separator
4. Gas Liquid Vertical Separator
5. Tank Sizing
6. Calculating density and viscosity of a mixed phase

It also covers the below side calculations:

1. Calculating the density of an gas based on ideal gas law including compressibility factor
2. Calculating pipe inner diameter based on nominal diameter and schedule
3. Calculating pipe equivalent length considering fittings and valves

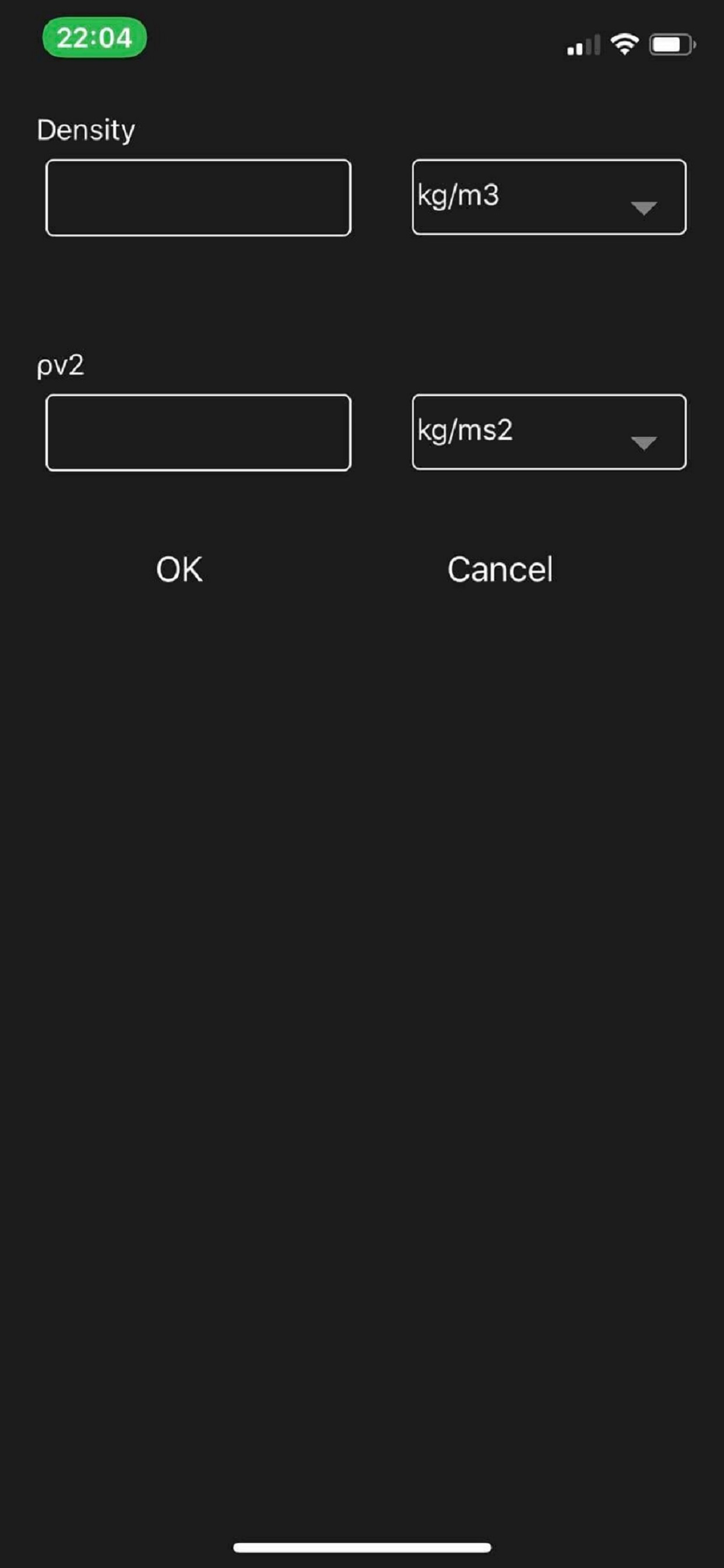

4. Calculating gas maximum velocity based on a given ρv2 criteria
