TouchDirector Mini

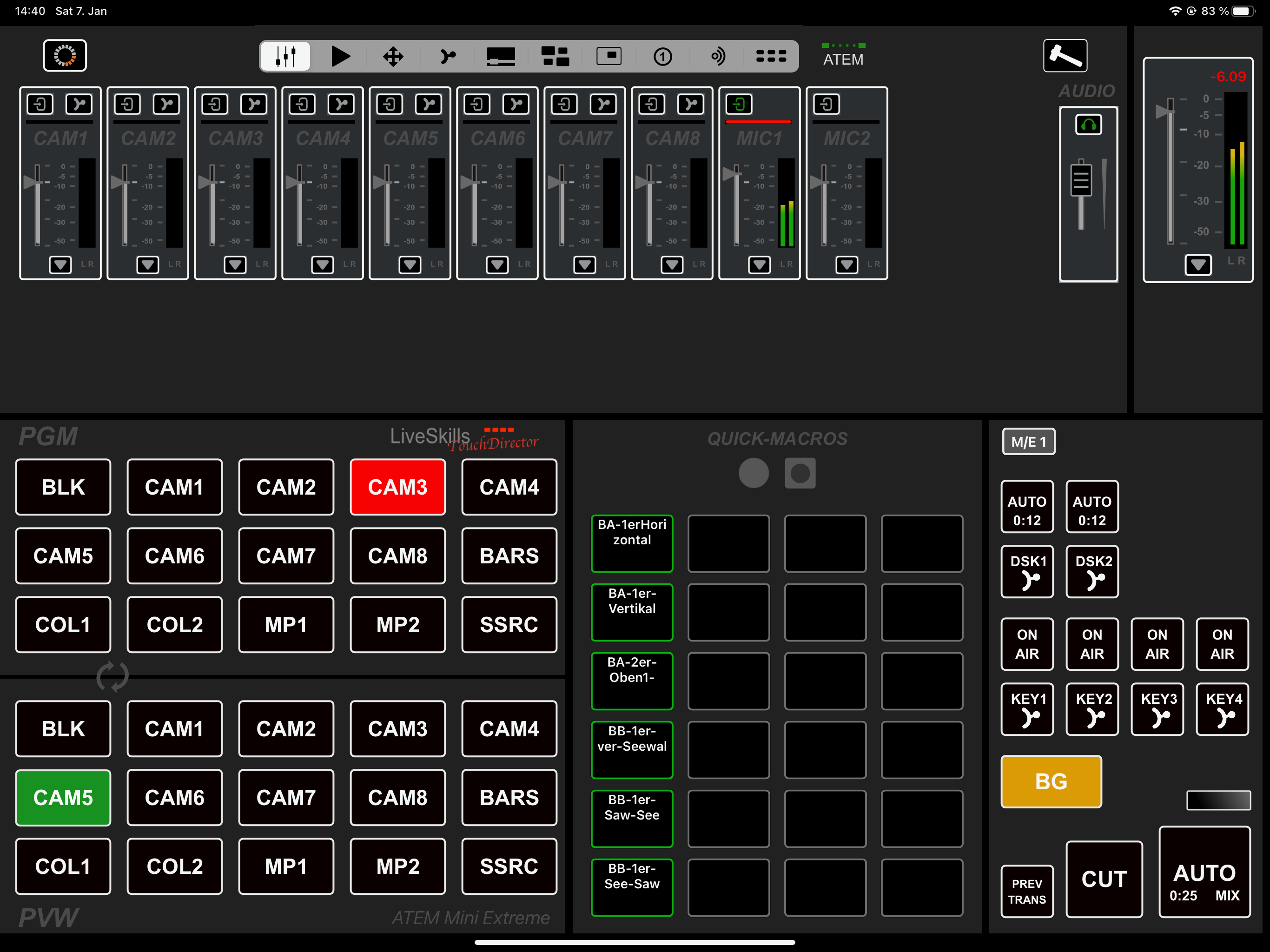

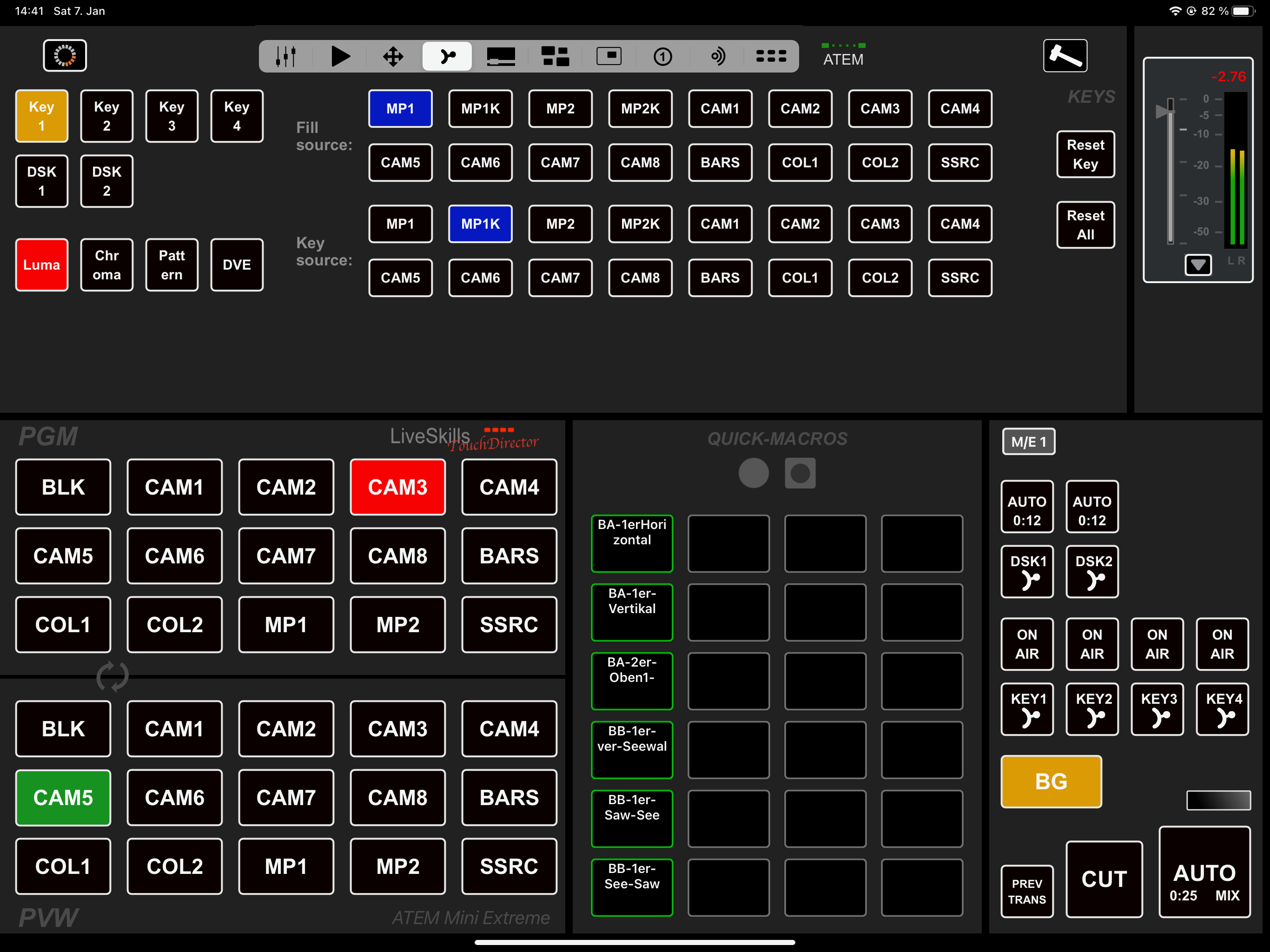

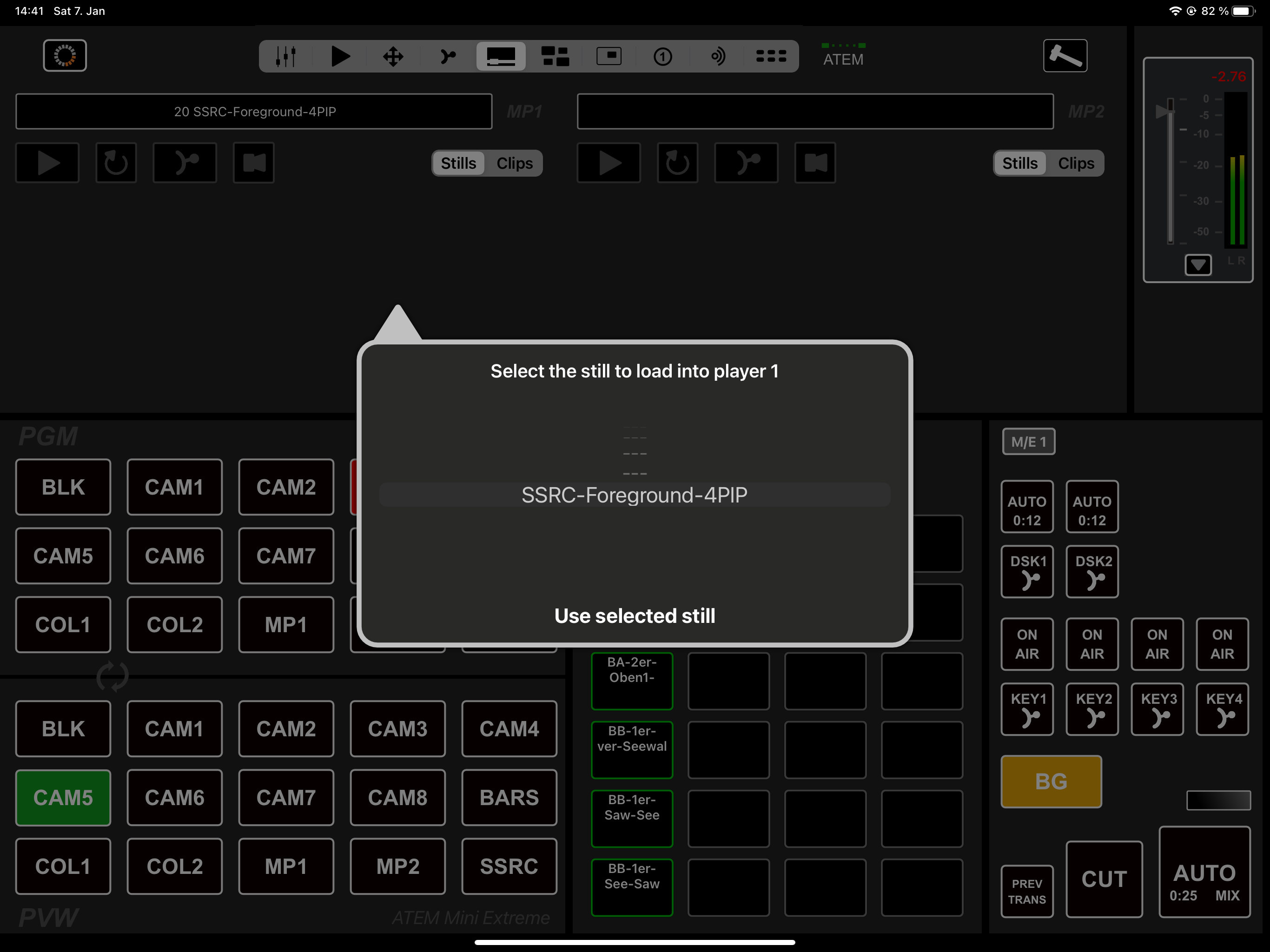

TouchDirector ATEM Panel app to control every ATEM switcher from ATEM Mini to the ATEM Constellation in broadcast panel style. In addition to PVW/PGM, macros and transition area, you can select one of the following sections: • Audio • HyperDeck playback control • Aux control (up to 4 with ATEM Mini Extreme ISO SDI) • M/E 1 Key and DSK sources control in broadcast panel style • ATEM internal media player control • SuperSource/DVEK with box animation, Control of up to 6 PiP boxes* in one composition • WorldTally system • Streaming/recording • All macros

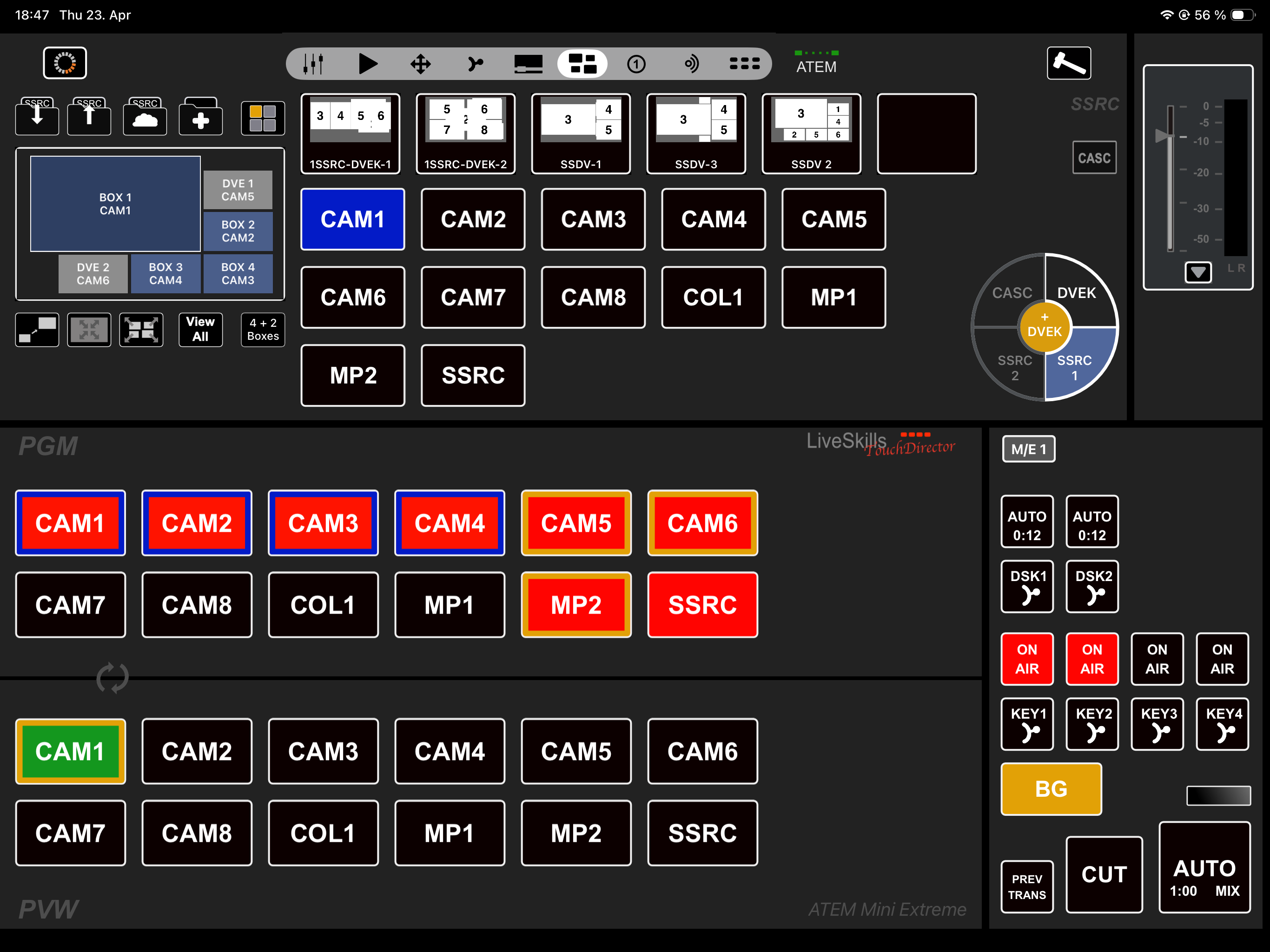

Macro driven animation of SuperSource boxes and also up to 2 DVE key boxes* with real-time generated macros. TouchDirector is generating, sending and executing animation macros in real-time. This revolutionary solution makes animation much smoother, for SuperSource and DVEK animation in progressive formats.

*with ATEM Mini Extreme, number of PiP boxes depends on ATEM Mini switcher type

More features:

• Save your Multi PIP compositions to your iCloud or other cloud services or share it with other iOS devices • Load compositions instantly or use Quick Composition buttons to prepare your upcoming Multi PIP events, it's like having multiple SuperSources! • Zoom up and down every single box e.g., to bring a talk guest from a discussion into front and back to the composition. Simply switch on the “single box zoom button”, and every box tapped by your finger will expand or collapse again, with just a touch on the visualized Multi PIP tool in the app! • Send all PIP boxes out of the screen after preparing. Then bring only the background on air and all boxes with a quick composition button animated back to the screen - an amazing effect! • Easy streaming setup for ATEM Mini Pro/ISO/Extreme with TouchDirector App for iPad. Copy and paste your streaming data and start streaming instantly without complicated XML editing. • Monitor your stream quality with the "Streaming data rate monitor", which records the data rates every second. Export streaming protocol e.g. for your client as chart in PNG format. • Select sources for all aux out in a broadcast panel design with customizable buttons. • Select sources for all upstream keys and all DSK keys in a broadcast panel design with customizable buttons. • Macros, Audio control, PVW/PGM row, AUX control, worldwide Tally, Media Player control, HyperDeck control. • PGM/PVW row is visible and switchable all the time, you can also swap PGM/PVW row to switch more comfortably on the iPad. • Manage and start up to 100 ATEM macros arranged in 10 groups and up to Quick macro buttons in definable number of rows between PGM/PVW and key area. • See the audio levels live and adjust them while controlling other part of the ATEM. Audio setup popup for every channel with on/off, tie, volume and balance slider. • See all AUX sources in one view and set them in broadcast panel style. • Send tally to your remote camera people and connect to them with text chat (free: max. 4 participants). • Choose stills and clips in the ATEM integrated Media Player, tie clips with DSK or Transition (Media player 1 - 4). • Connect 1 or 2 HyperDecks (all models) and use it as fully automated integrated media player for pre-produced clips or key-animations (use fill and key output at the HyperDeck Mini for alpha channel clips). • Generate clip lists with mark in and out and set repeat for your clips stored on your HyperDeck and HyperDeck Mini. • Assign your HyperDeck inputs related to their physical inputs in the Deck Assignments, also for Key and Fill. • Control your Key and DSK pre multiplying in one view in the Key Assignment settings. • Assign your DVEK boxes to your desired upstream key in the Key Assignment settings. • Recording functionality, you are able to control the recording functionality of an ATEM Mini/Extreme with up to 2 connected SSDs. • Timecode functionality: TouchDirector can now set ATEM time code type and preset time code in the new recording area.
