Sophie APP

Name: Sophie APP
Rating: 5 (1 reviews)
Author: PessTechnologies

By: PessTechnologies

Utilities

Features & Capabilities

Sophie APP is the application that can handle the PESS Sophie system via TCP / IP. In this way we obtain a bi-directional link between the panel and your smartphone without having to send and receive numerous SMS Once you create a profile, accessing to the control panel, will automatically learn all the programming. You now have the ability to manage the system by entering the same password used to access the keyboard. There are no limits for the creation of profiles; 2 different layouts make this app customizable The app can manage 2 languages : Italian and English by setting the language on the device’s menu.

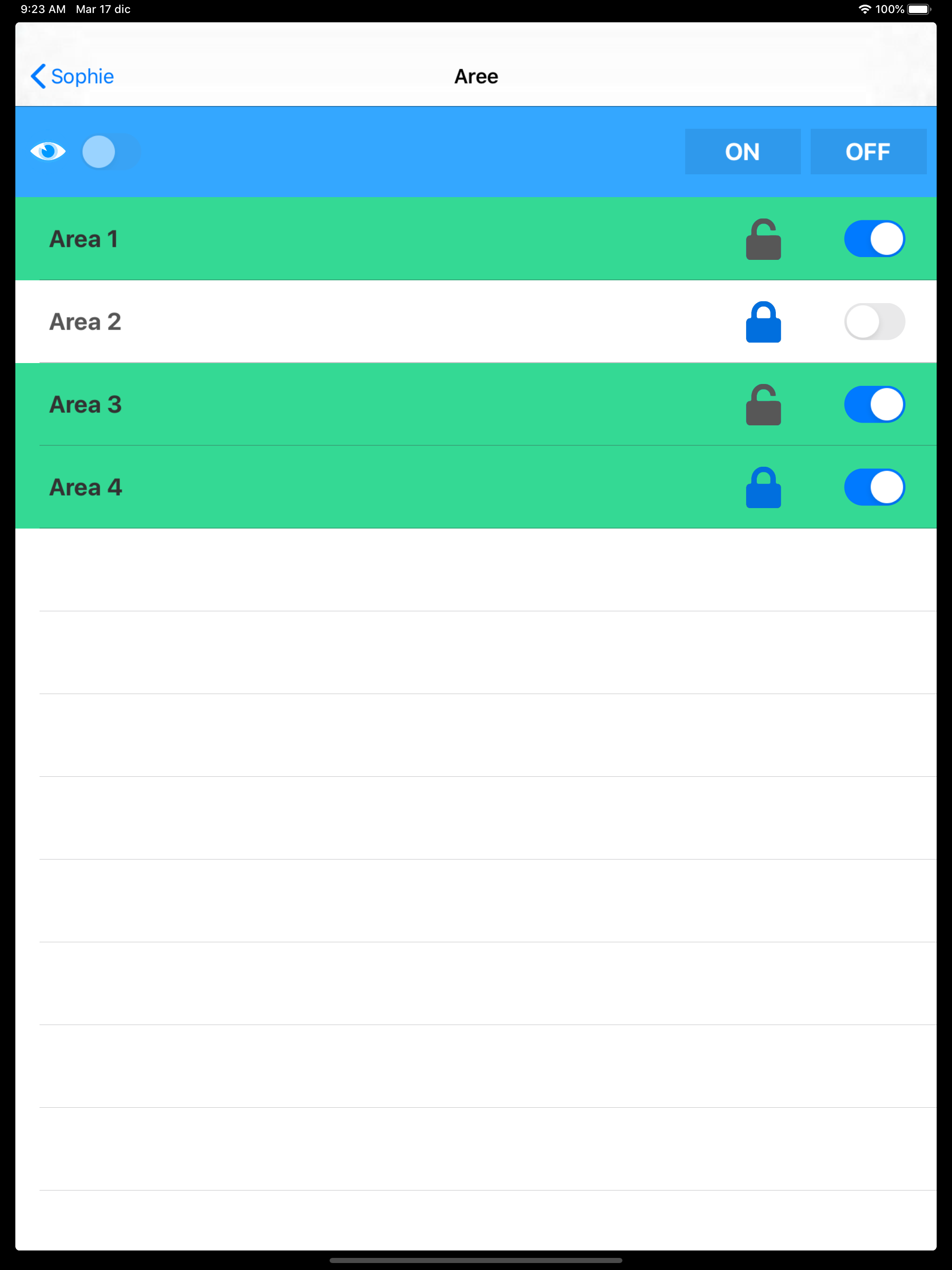

The application can manage: -Inputs: Status, enabling and disabling. -Areas: Status, enabling and disabling, locking and unlocking, supervision ON / OFF. -Alarms H24: status, enabling and disabling. -Anomalies: Display all anomalies in the Elios system -Events: Display up to 4000 events. -Programmes: Status, enabling and disabling

Functionning: Once installed and opened on the device the profiles screen will be displayed where the different profiles will be saved. To create a profile just click on the + displayed on the top right and choose the type of connection, direct or CLOUD.

Direct connection: Requires the update of the Sophie 1.00 or above. A window will open to enter the data of the i.Lan/NetB or WiLan board (WAN host and port and LAN host and port). The profile will be created when you click OK. The APP can manage automatically the LAN and WAN depending on the device connection.

CLOUD connection: Requires the update of the Sophie 1.00 or above.

A window will open to enter the data of the CLOUD (Username, Password, panel ID ). The profile will be created when you click OK.

Every profile is a PESS Sophie system. Clicking on one of them a password will be requested. Typing the password followed by a click on OK allow you the manage the system after few minutes. The following page will be the "MENU'" where the icons for inputs, outputs, areas, alarm H24, anomalies, events and programmes will be displayed.
