Hygienic Tube App DIN

The app is used in the industrial hygienic/food pipe construction. European standard (DIN EN 10357)

Functions: Calculation of offsets and weight calculation of pipes, offsets and profiles.

All nominal diameter and fittings are provided, so it will be very easy for you to solve complex calculations quickly. Even if you put in false information, you can not get wrong solutions. This way you can save material, time and stress. The App is your help in a hectic and busy working day.

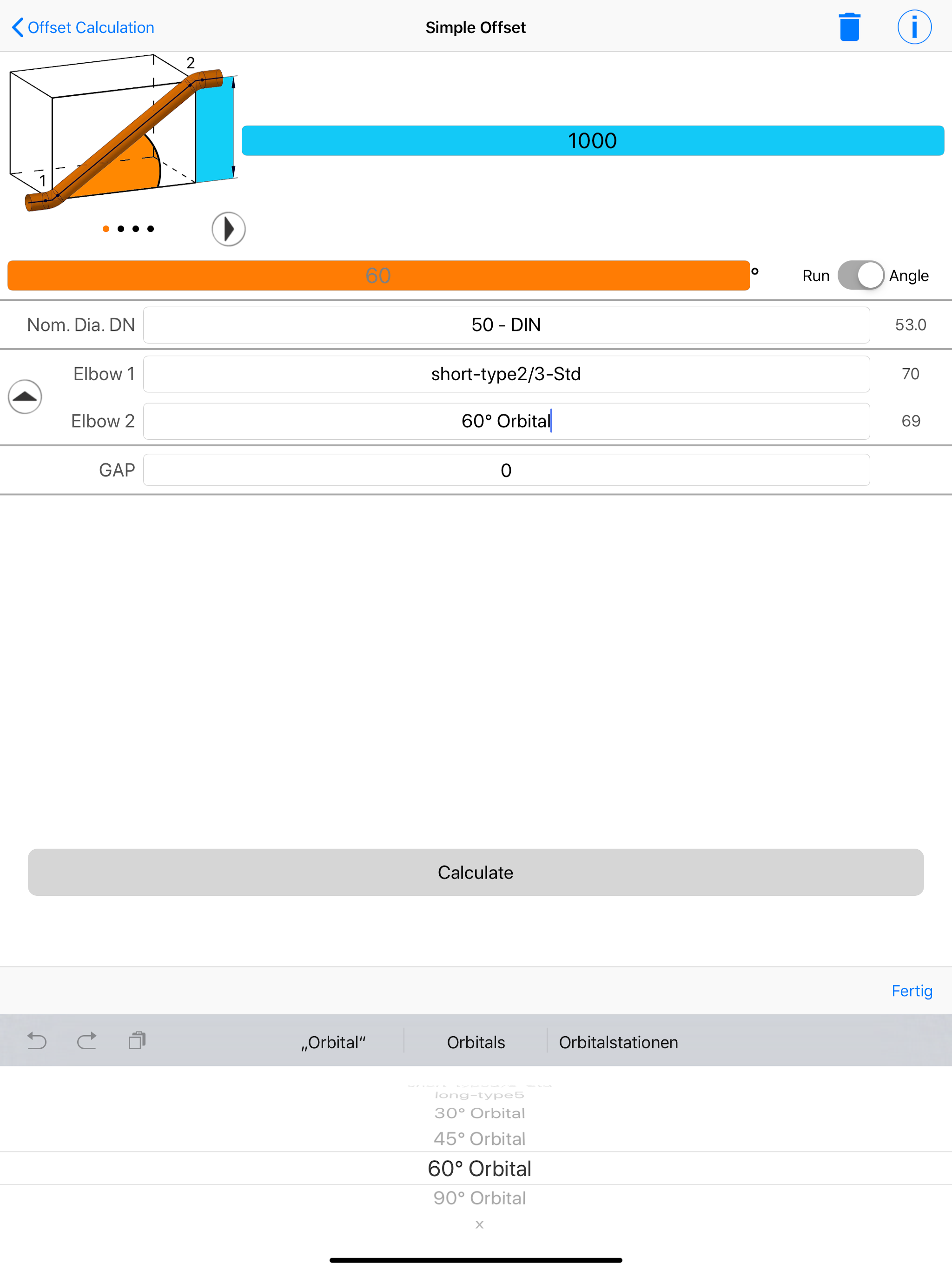

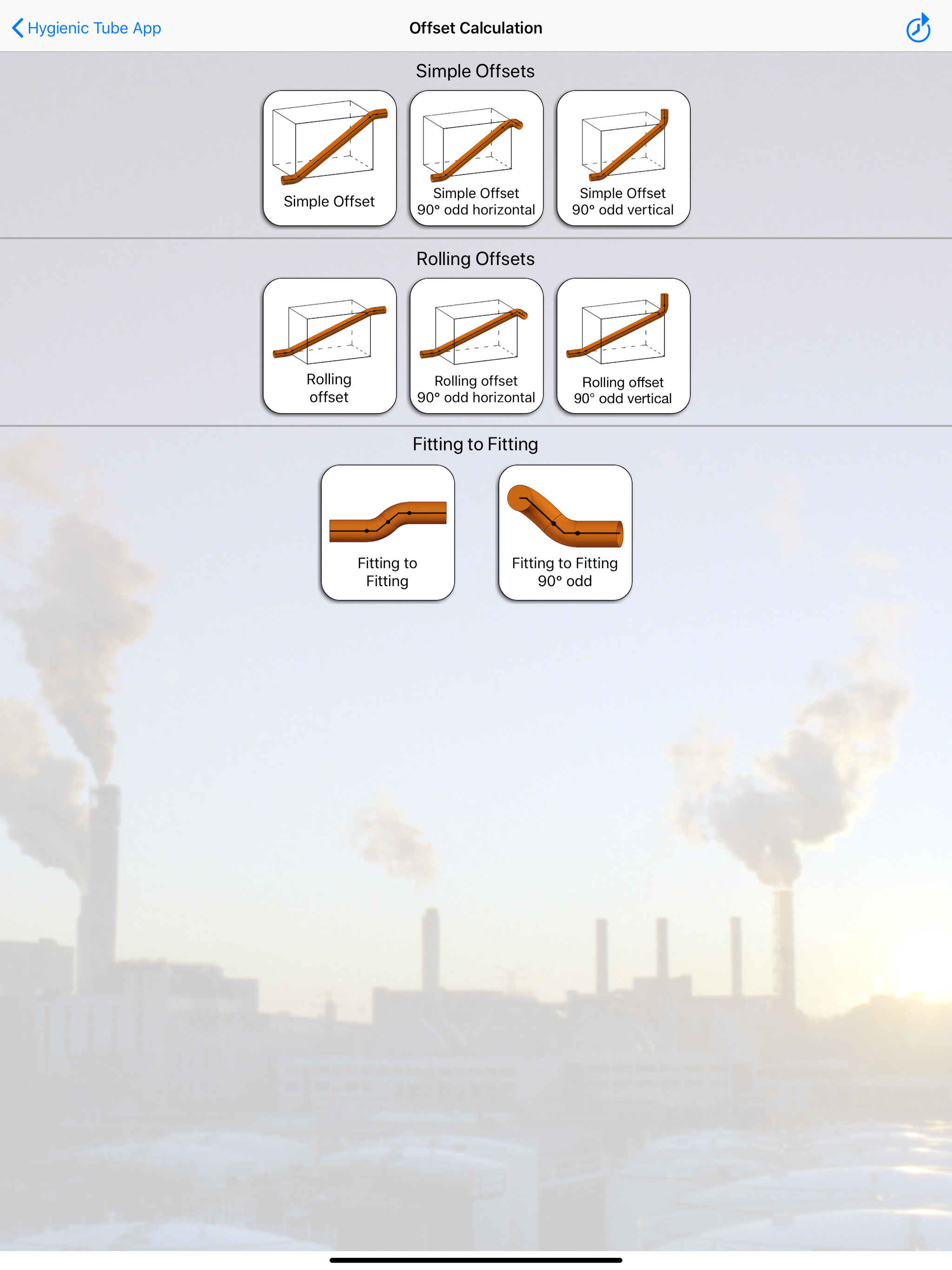

• 28 offset calculations (8 offset types with 2 or 4 interrupts),

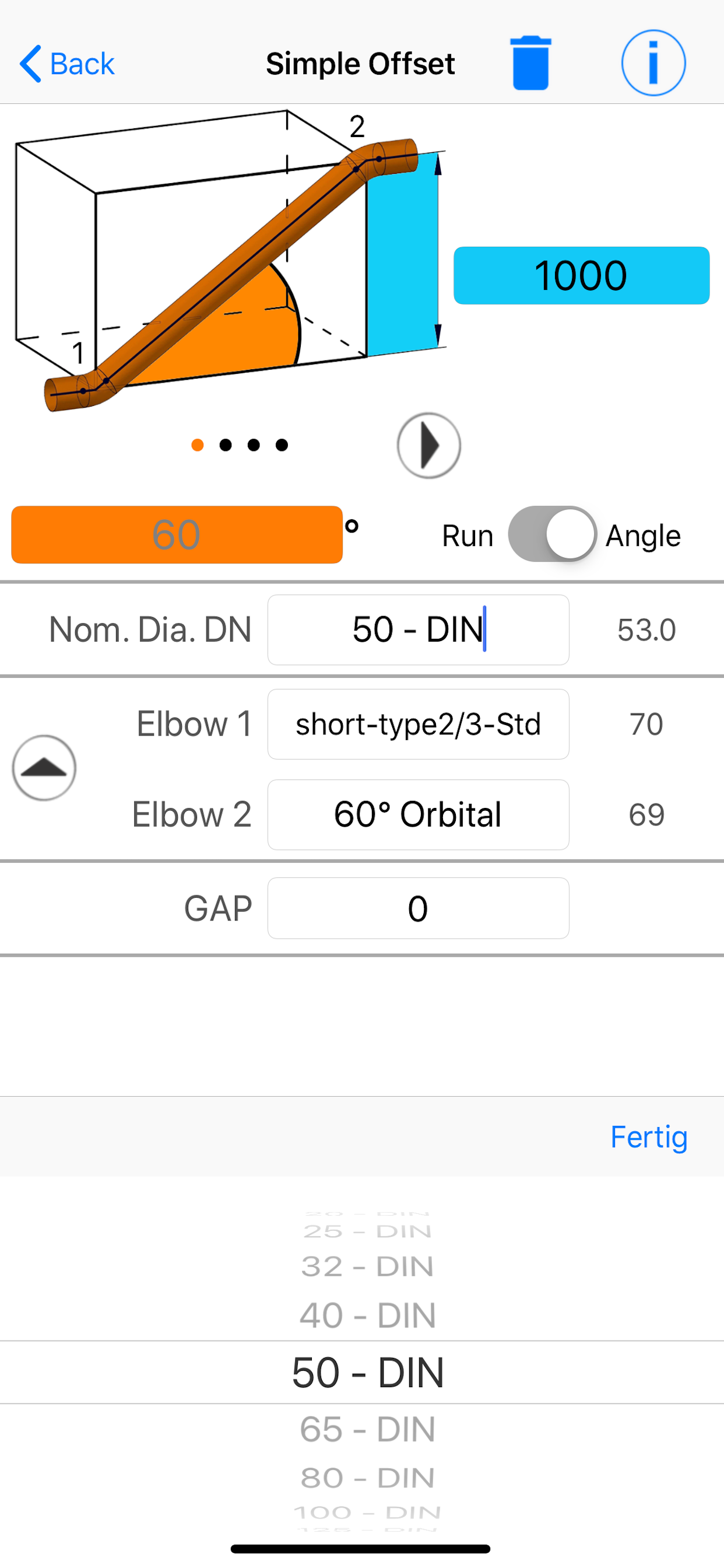

• Given nominal diameters DIN,ISO,BPE (DN25-200) to EN 10357 with outside diameter (z. B. NPS/DN 50 - 53mm),
• Calculation with lenght or elbow angle,
• 2 types of elbow,
• 4 types of orbital elbow 30°,45°,60°,90°,
• Manual input of elbow radius,
• Offsets with tee,
• Individual gap,
• Detailed help and description,
• History of your calculations.

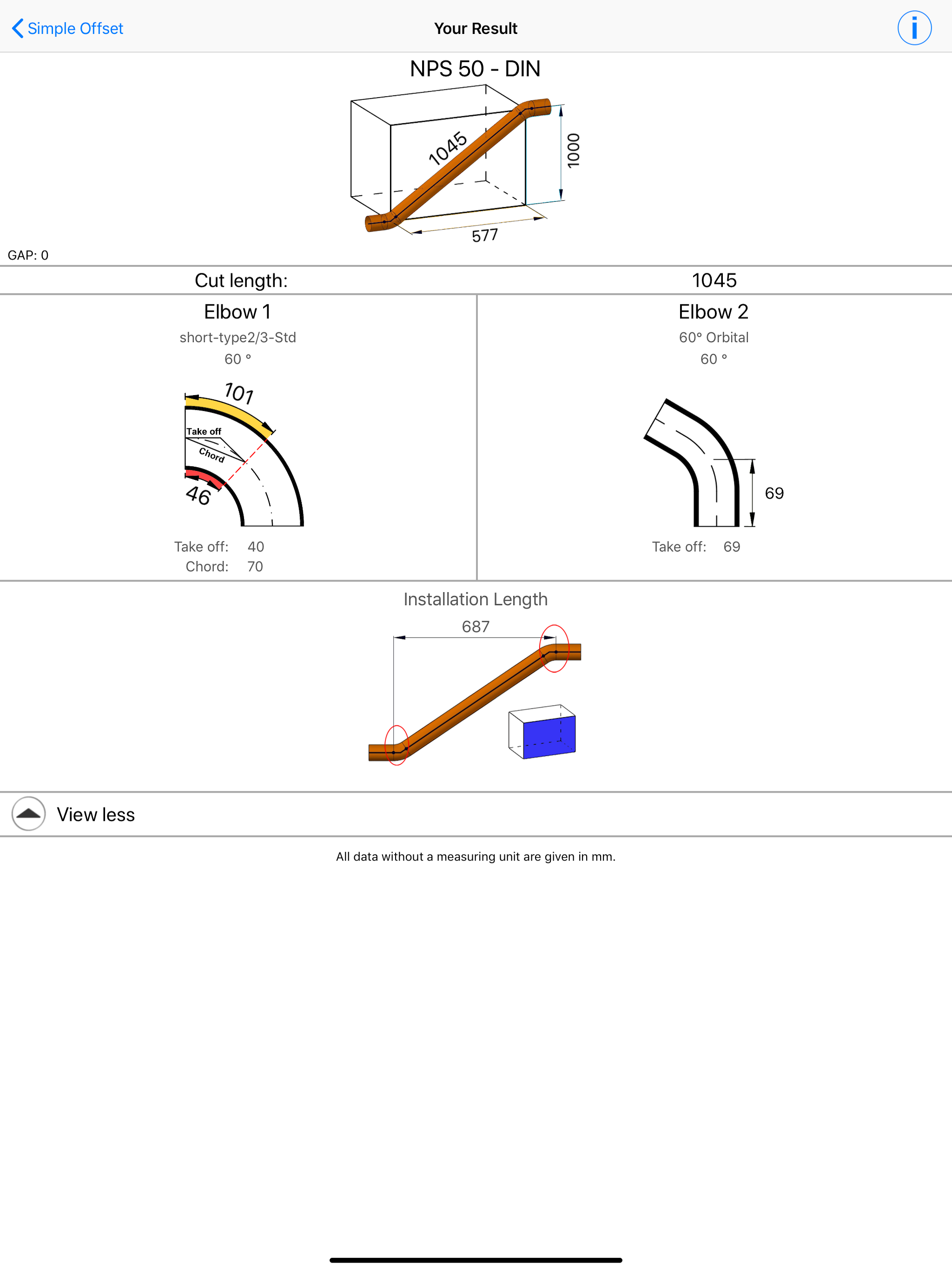

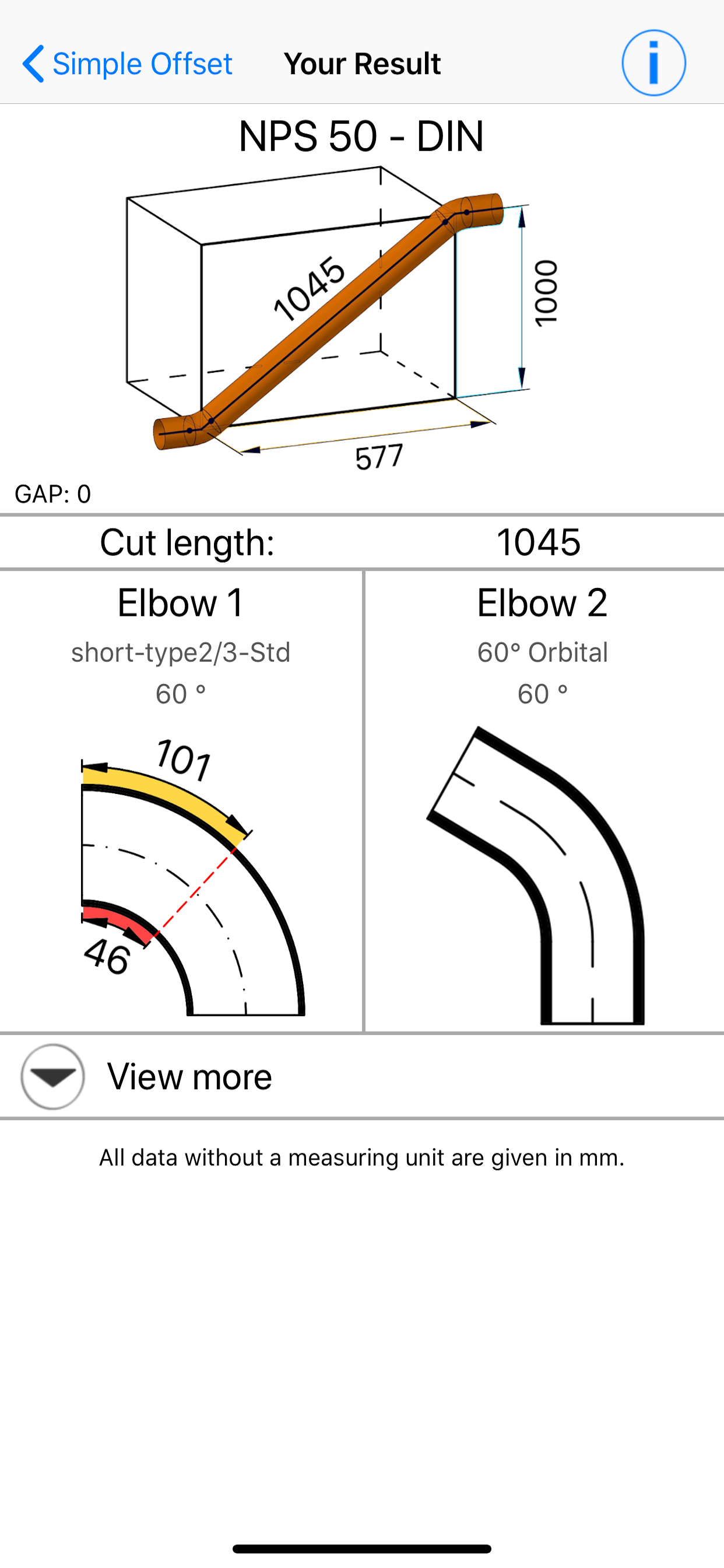

Results

• Cut length
• Elbow angle
• Inside and outside cutting values of the elbow
• Take off, chord
• Installation length of offset
• Calculation of offset weight

Fittings :

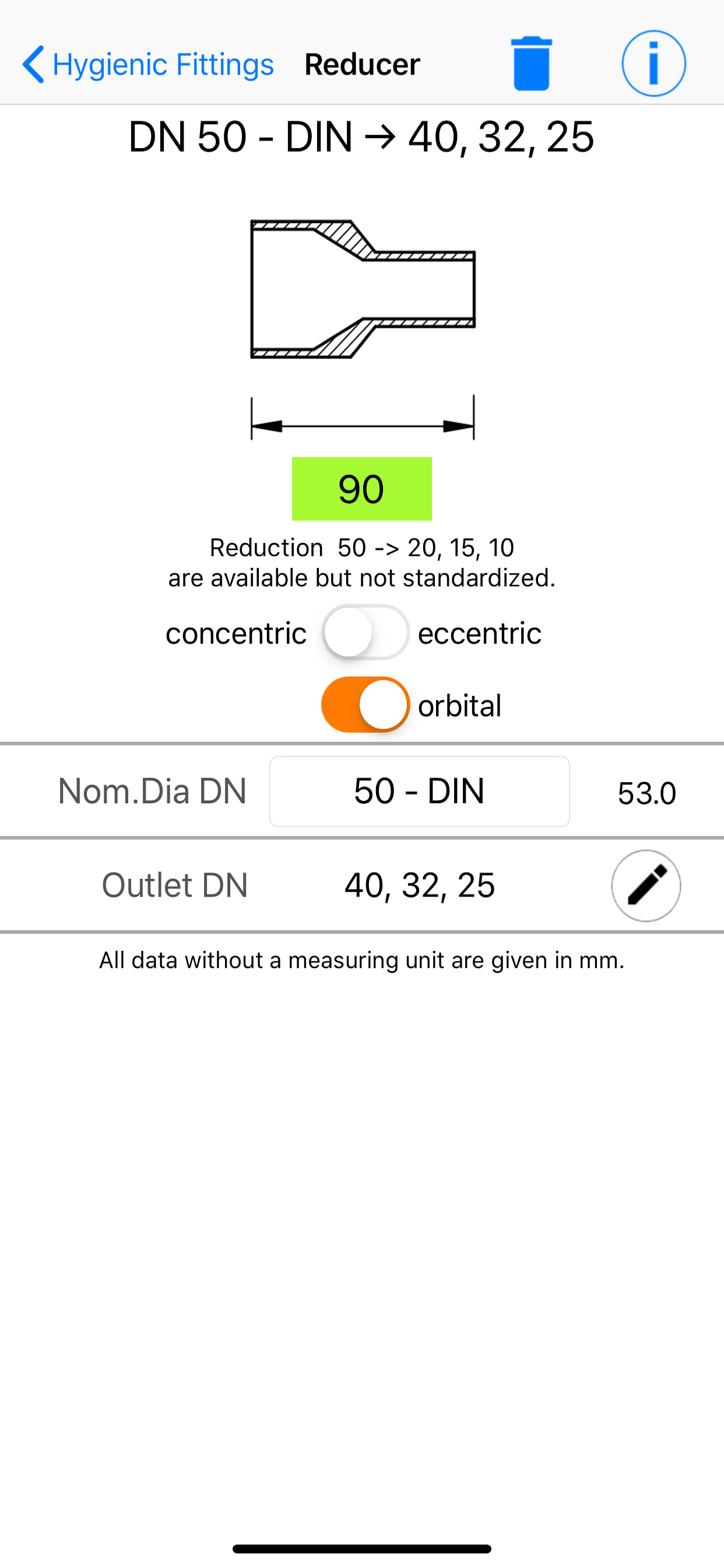

• elbows, Tee, reduzier - (orbital and classic),

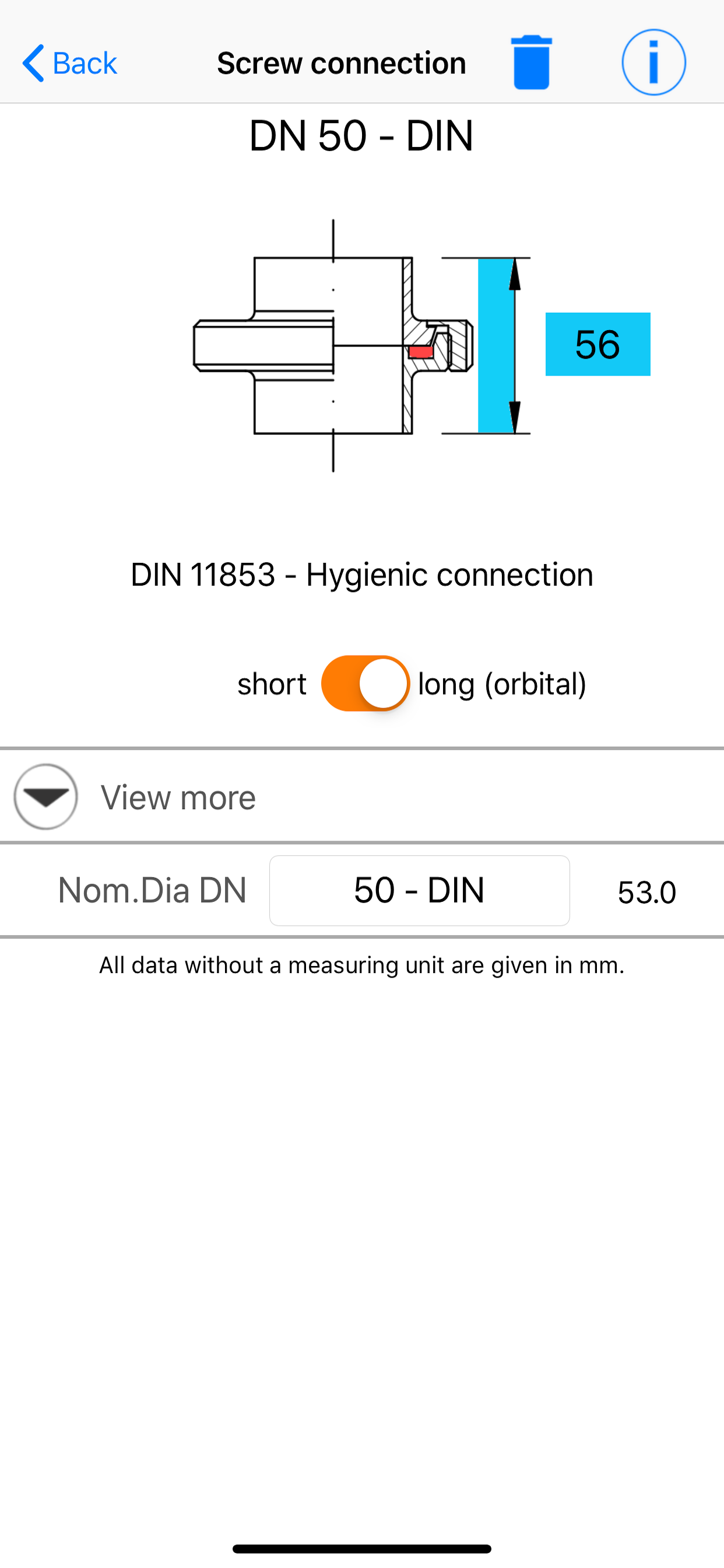

• Crew connection, flange connection, clampconnecion - (orbital and short),
