X/Y PAL

X/Y PAL is your handsome X/Y pad MIDI controller. Control up to 8 parameters per pad. Each parameter can be configured:

• set MIDI Channel and control change message,
• set the CC value range,
• set a color and a name
• pick the MIDI output device and
• inverse the CC value mapping.

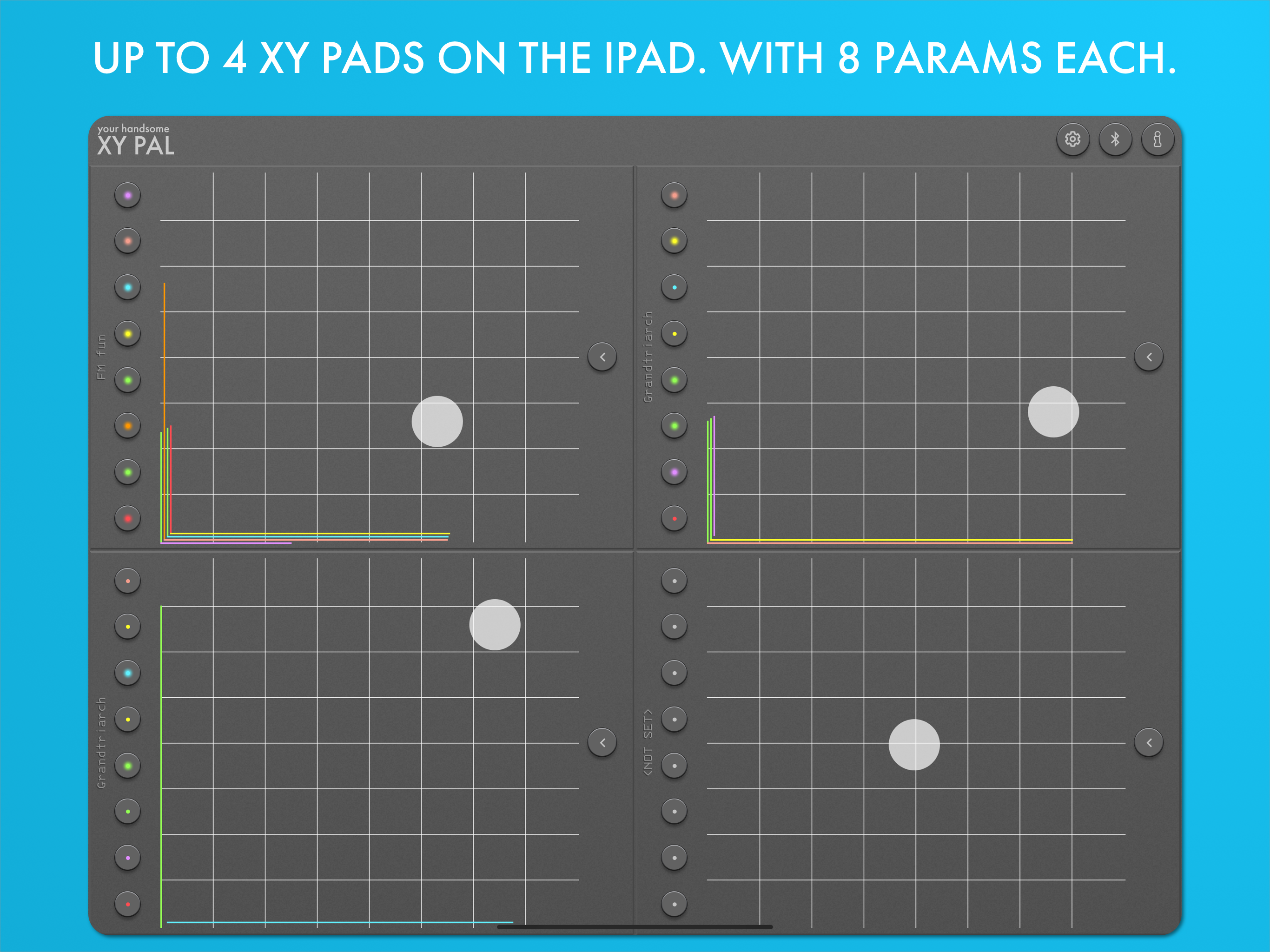

On the iPad up to 4 pads can be visible in landscape mode and up to 2 in portrait mode. On the iPhone there can be 2 pads visible and controlled at once.

Pick CC value mappings from a list of predefined devices to help create your custom pads.

CC value change is visualized using bars on the side of each pad.

** CONFIGURE PARAMETERS **

• configure the X/Y Pads in the settings section
• configure each of the 8 parameters by clicking on the sidebar in the settings section
• pick from a predefined list of devices to easily set the CC value and name or just set some custom name and CC value
• set the color of the parameter by clicking on the color button
• inverse the CC value mapping by selecting the inverse button for the parameter
• select the MIDI output for each parameter
• configure the CC value range for each parameter.
