Features & Capabilities

The Rack Builder is a design tool to help IT, audio & video, sound, network and telecoms engineers quickly and easily design the layout of standard 19” server and IT equipment racks.

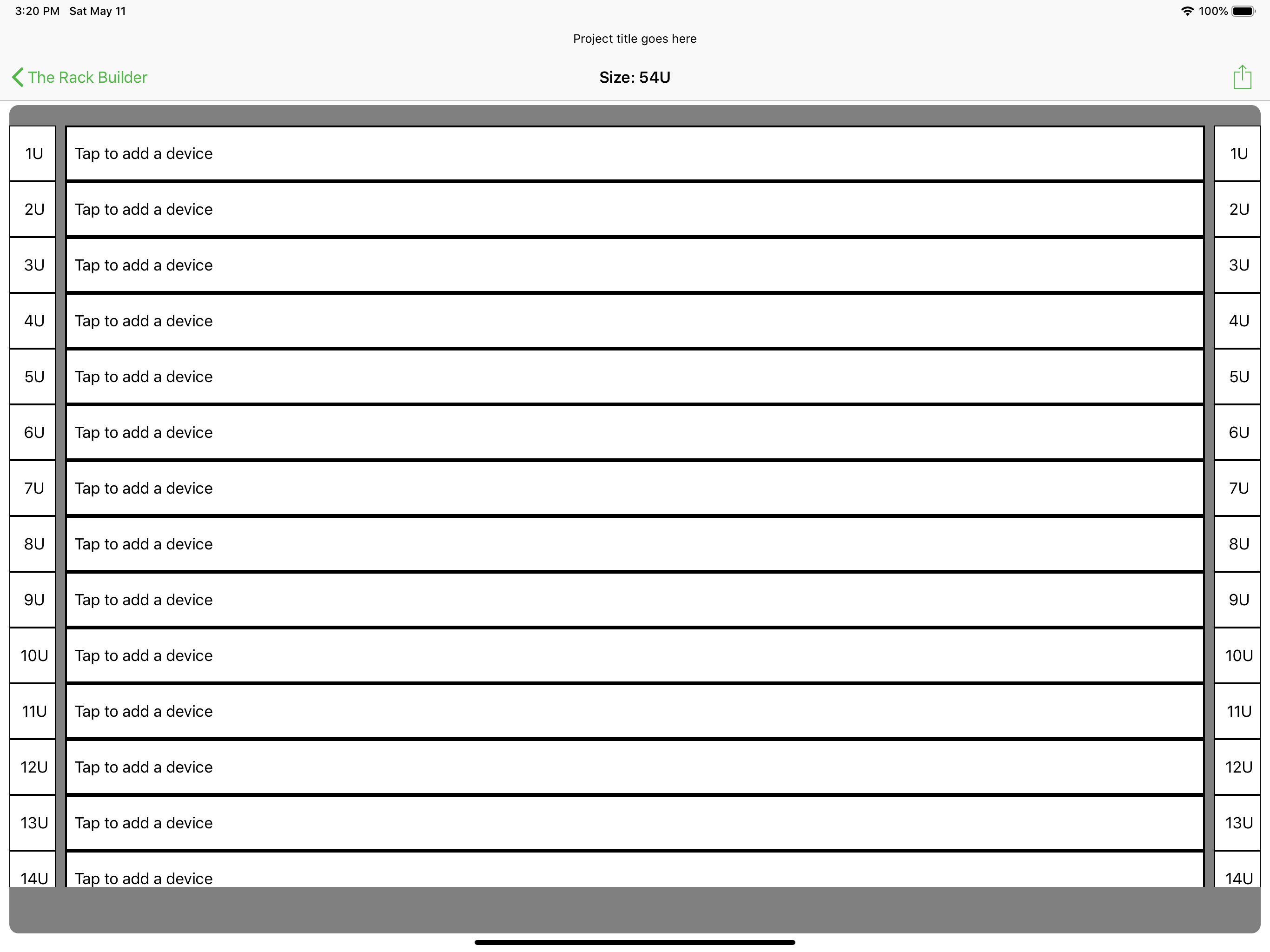

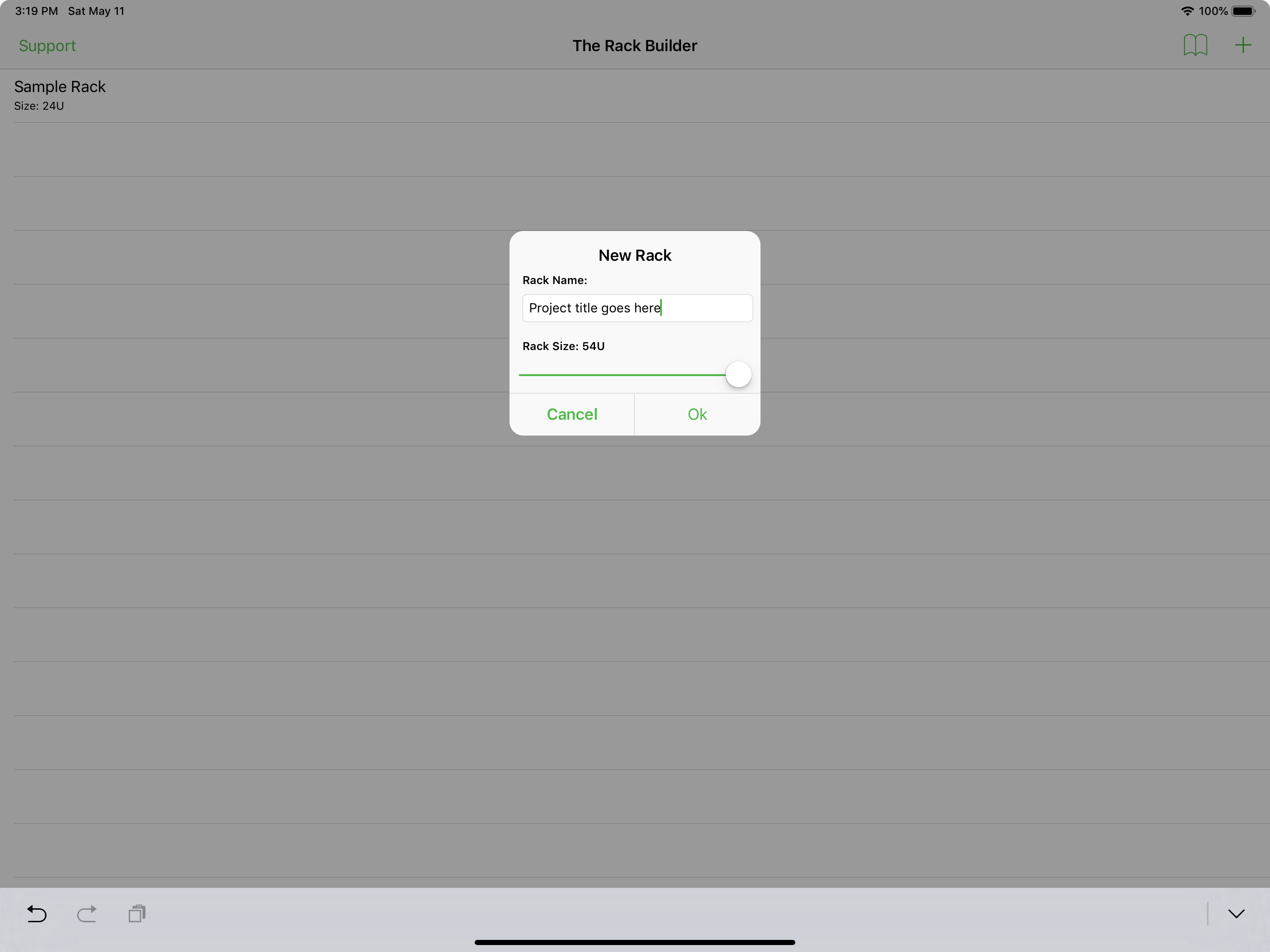

  1. Give your rack a name, set it's height in U and populate the 19" rack with your devices.

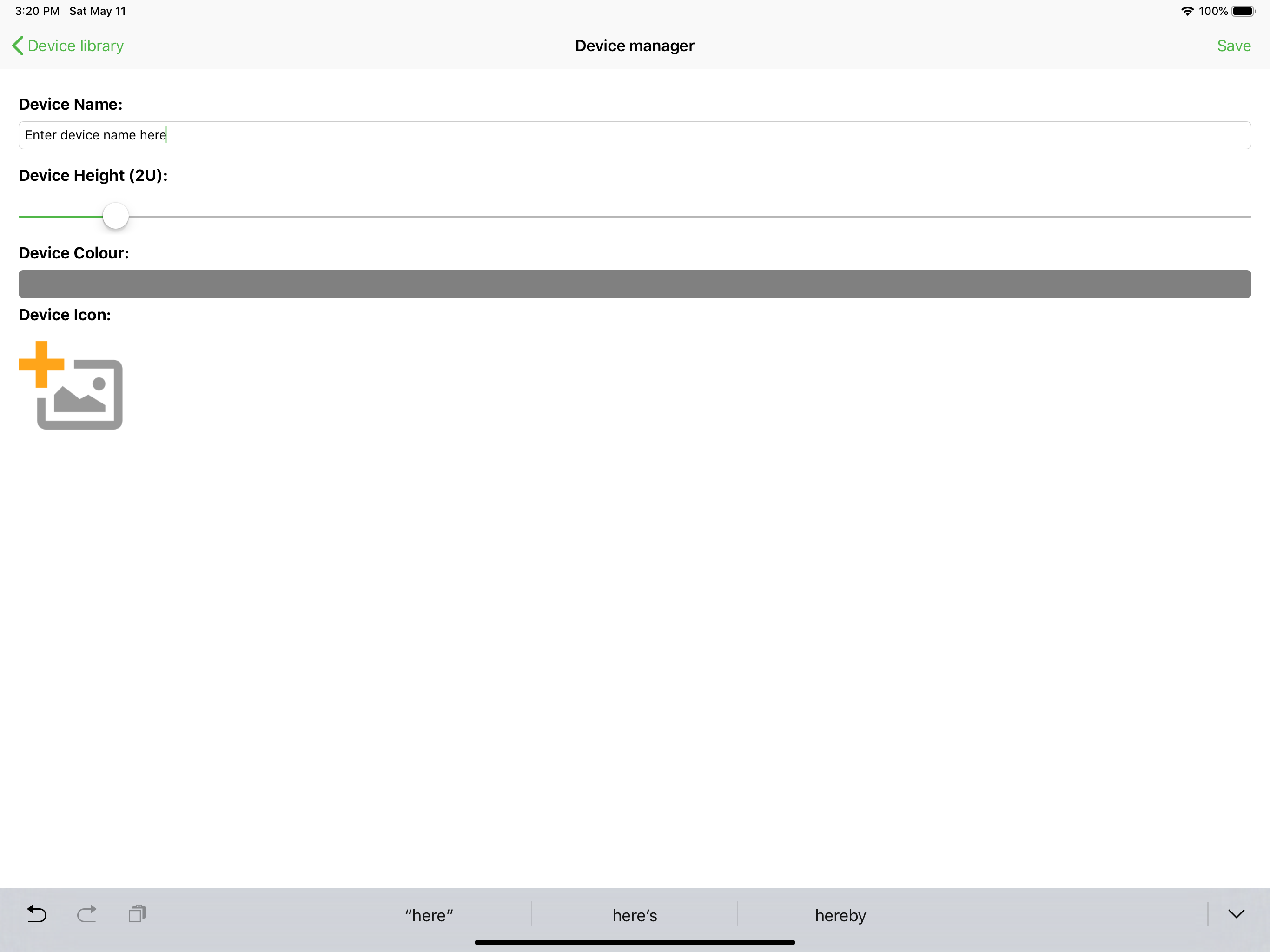

  2. Quickly create a library of devices, choosing title, colour and icon. Swipe left on an existing device in your library to edit its properties.

  3. Devices can be deleted, edited and moved around within the rack until your rack design is finalised.

  4. Then, export the layout as an image, or as a CSV file.

The app supports multiple rack designs.

Rather than incorporating a vast symbol library, by allowing you to select the device icon from your device gallery, you can feature symbols, manufacturer logos or other appropriate images.

Device colours can be separated into industry standards, blue for audio, green for video, or be adjusted to suit your company brand colours.

The app is designed to provide rack layout only, and does not allow for connections to be shown between devices.

User Growth & Download Statistics

App
By:
James Applin
Rating:
4.50
(4)
Version:
1.1.1 Last updated: 2019-07-09
Version code:
831935176
Creation date:
2019-05-13
Compatible devices:
Size:
8.66MB
Price:
9.99
URLs:
Privacy policy
Full description:
See detailed description
Source:
Apple Apps Store
Data ingested on:
2026-06-06
Compare stats and ranking:

Contact the developer

Chrome-Stats does not own this Apple app. Please use these information below to contact the Apple app developer.
Developed by:
James Applin
Apple Apps Store
https://apps.apple.com/us/app/the-rack-builder/id1463037532

User Reviews

Very simple to use. Nothing fancy at all. Straight hammer and nails. PERFECT!!!!!
by Ra*****, 2023-05-28

The tool is Handy and I like all the existing features. The only thing missing is an ability to drag your components around for dynamic sorting as opposed to having to delete components and re-add the. To change their rack order. Just found by accident that if you hold down your finger over a component in the rack you can actually dynamically move them. Very handy tool.
by ma*****, 2022-06-02

Allows you to quickly design rack layouts in the field.
by Jo*****, 2020-03-16
