LiNA Connect

LiNA Connect - the commissioning APP for the Blu2Light system.
 With LiNA Connect you can easily set up any Blu2Light system with your tablet.
 BLU2LIGHT FUNCTIONS

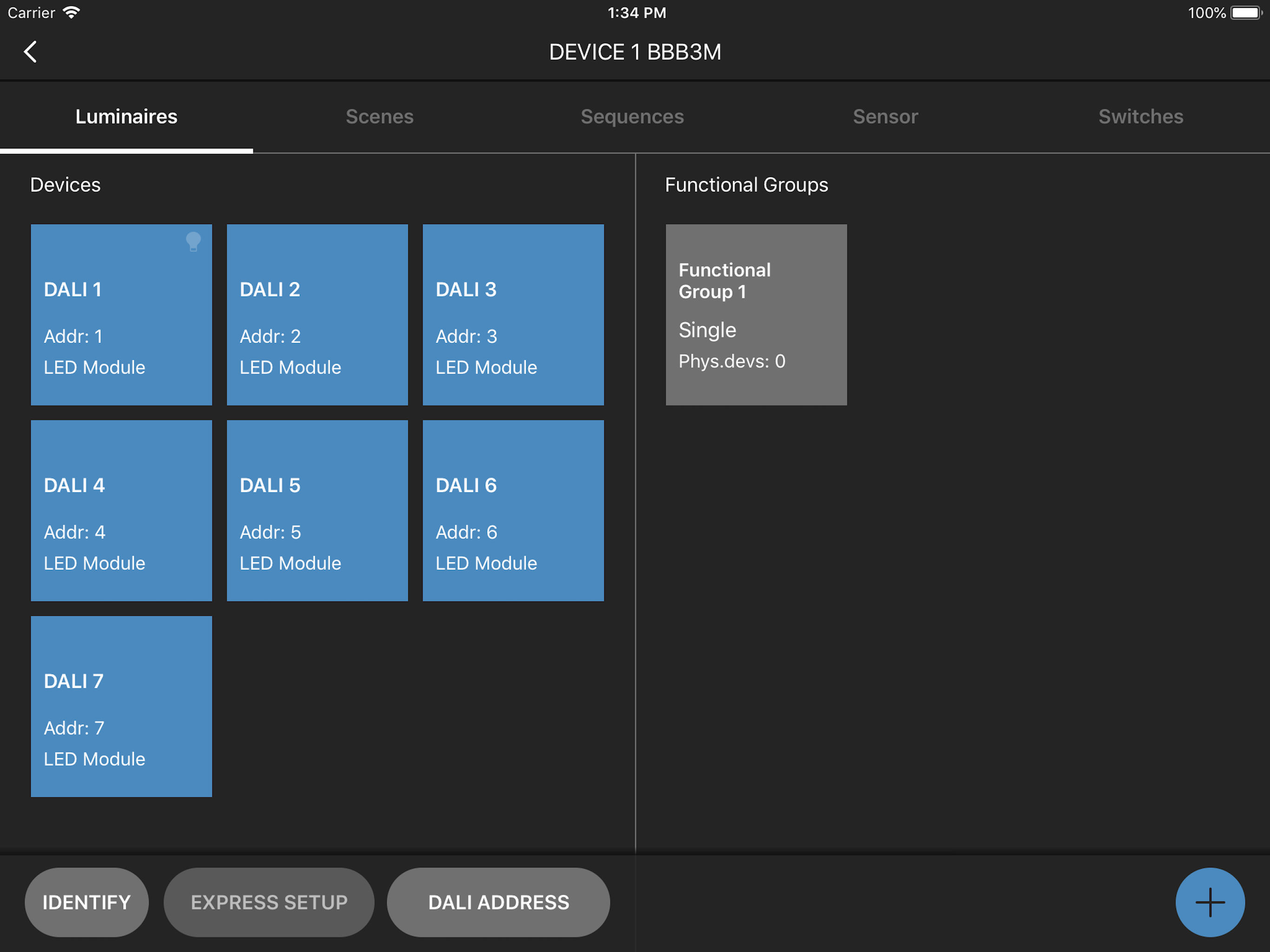

• Up to 64 DALI lighting devices per Blu2Light control unit with DALI connection!

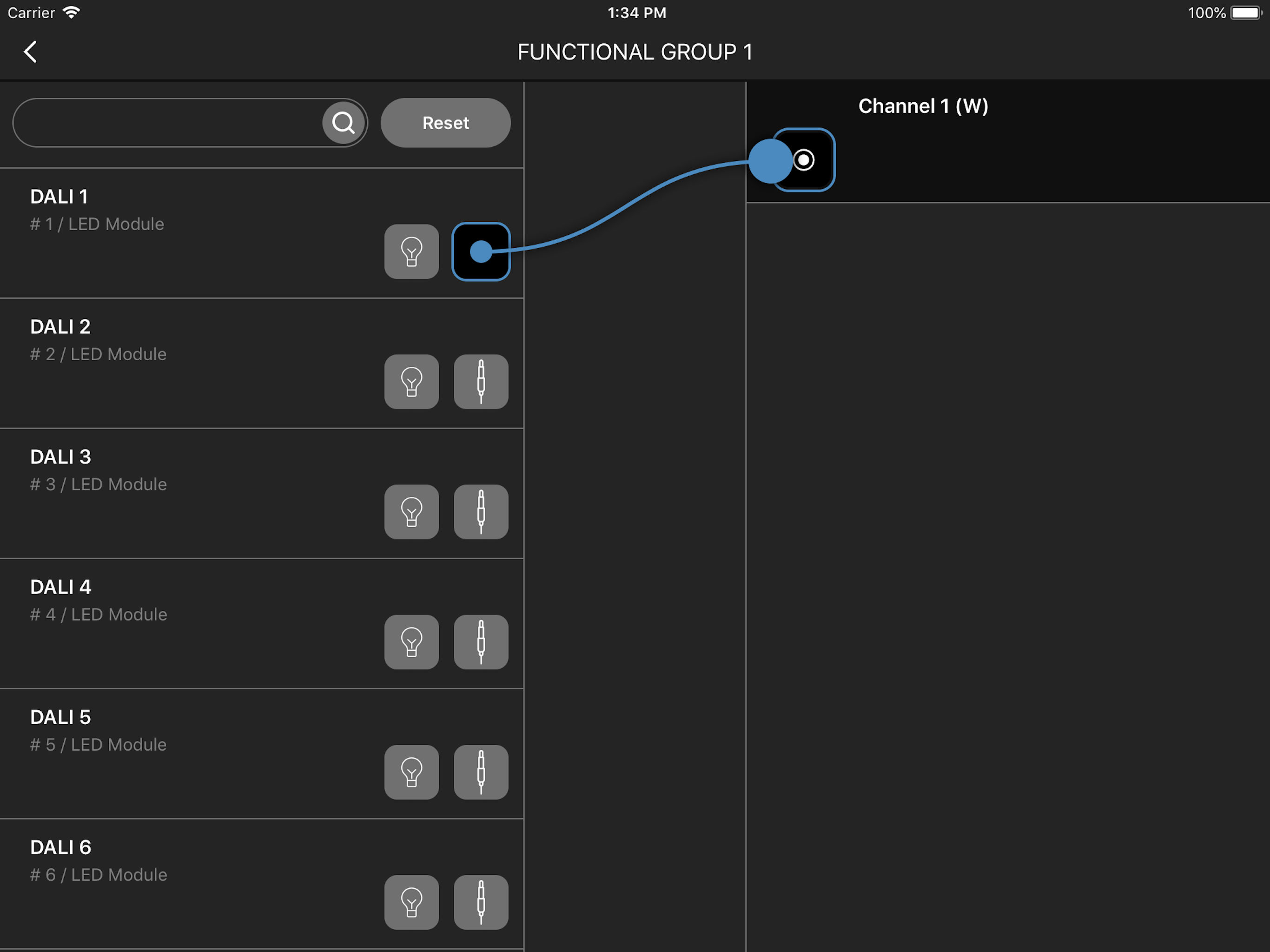

• Up to 16 system luminaires or luminaire groups per Blu2Light control unit
• Up to 64 light scenes per Blu2Light control unit

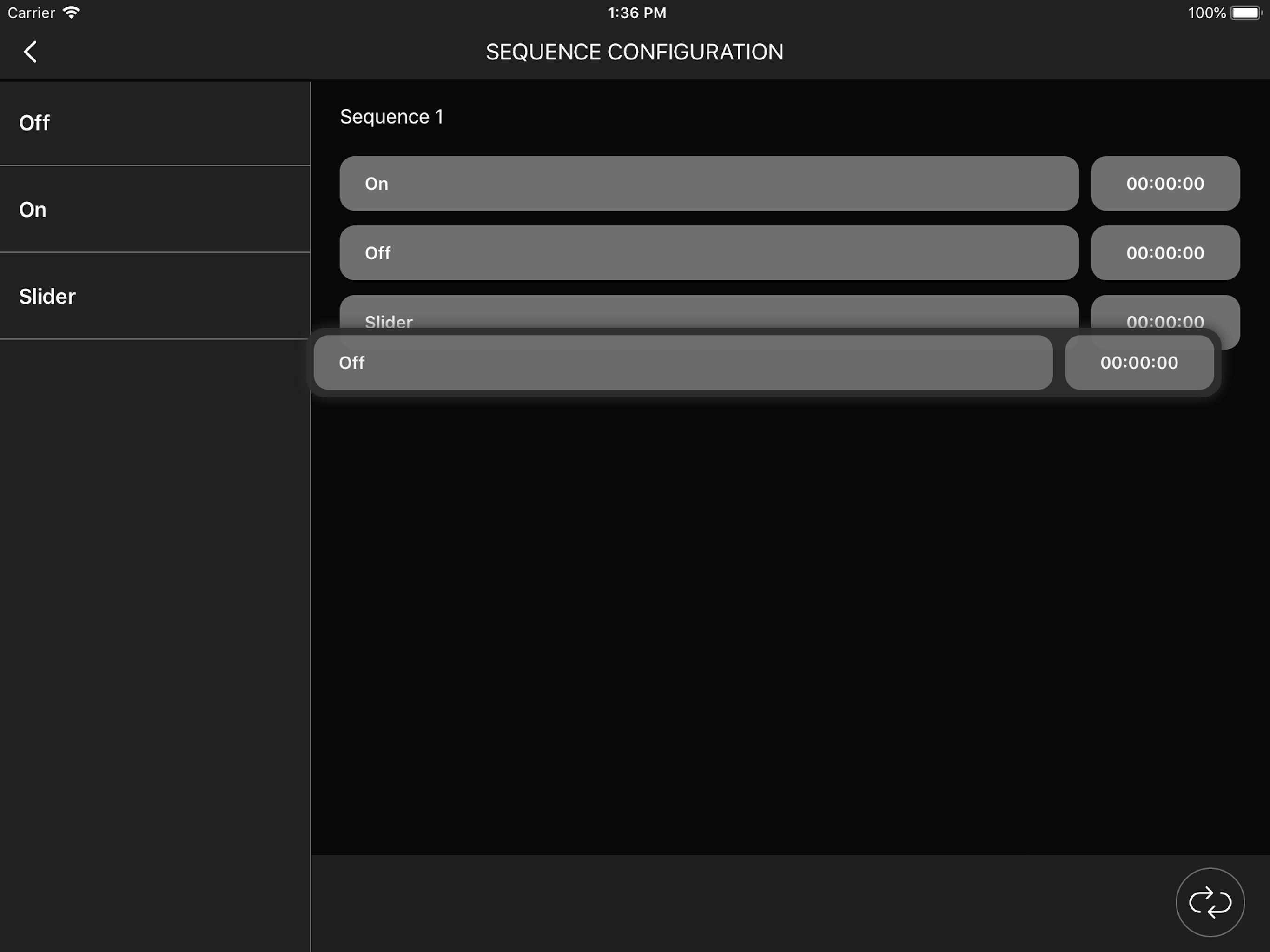

• Up to 64 sequences per Blu2Light control unit
• Up to 32 timers configurable per Blu2Light control unit
• Daylight and motion detection integrated (only devices with sensors)
• Reliable wireless mesh system with especially high performance
• Color control and dimming for all common standards already integrated
• Comprehensive security functions to protect the system


 Blu2Light Bluetooth® System AT A GLANCE

• Open Standard means that this technology is accessible, developable and usable for all market partners.
• No additional router required
• Increased network security ensures optimal protection against illegal access even before and of course during commissioning (light hijacking).
• The 4-level security concept:
• Individual password in the app and at cloud level for users and administrators.
• Unique product reference code in the form of a QR code -Mesh connections are encrypted (128 bit/AES)
• Bluetooth® communication is encrypted (128 bit/AES)
• Immediate compatibility with any Bluetooth® module with Nordic nRF52 chipset (currently based on BT 4.2) Adaptations to other manufacturers are possible.
• Self-healing mesh network with high performance by using all 40 Bluetooth® channels for data transmission and distribution
• An event-based operating system allows to define 250 incoming and outgoing events per Bluetooth® device (switching, dimming, color, timer, etc.)
• All Blu2Light components can work as a stand-alone system, form a Bluetooth® mesh network with several hundred devices and be integrated into building systems via an Internet-of-Things structure.
• Control and commissioning of the complete system is done via the LiNA Connect APP (for configuration) and LiNA Touch APP (for operation).
• When combining Blu2Light components with drivers with already integrated Active DALI technology (e.g. VS B2L ready DALI LED drivers), no separate power supply for the sensor is required.
• Blu2Light devices with DALI bus can be combined with any DALI driver via the DALI standard.
• Integration of EnOcean switches/buttons with Bluetooth® possible (PTM 215B)
• OTA update of the system (Bluetooth® mesh and operating system) possible


 For more information please visit: www.blu2light.de
