DuctCalc.Ca

DuctCalc.Ca is the iOS offline version of the most popular online ductulator app (ductcalc.ca) Enjoy using the app with no internet connection when subscribed!

App engineering explanation:

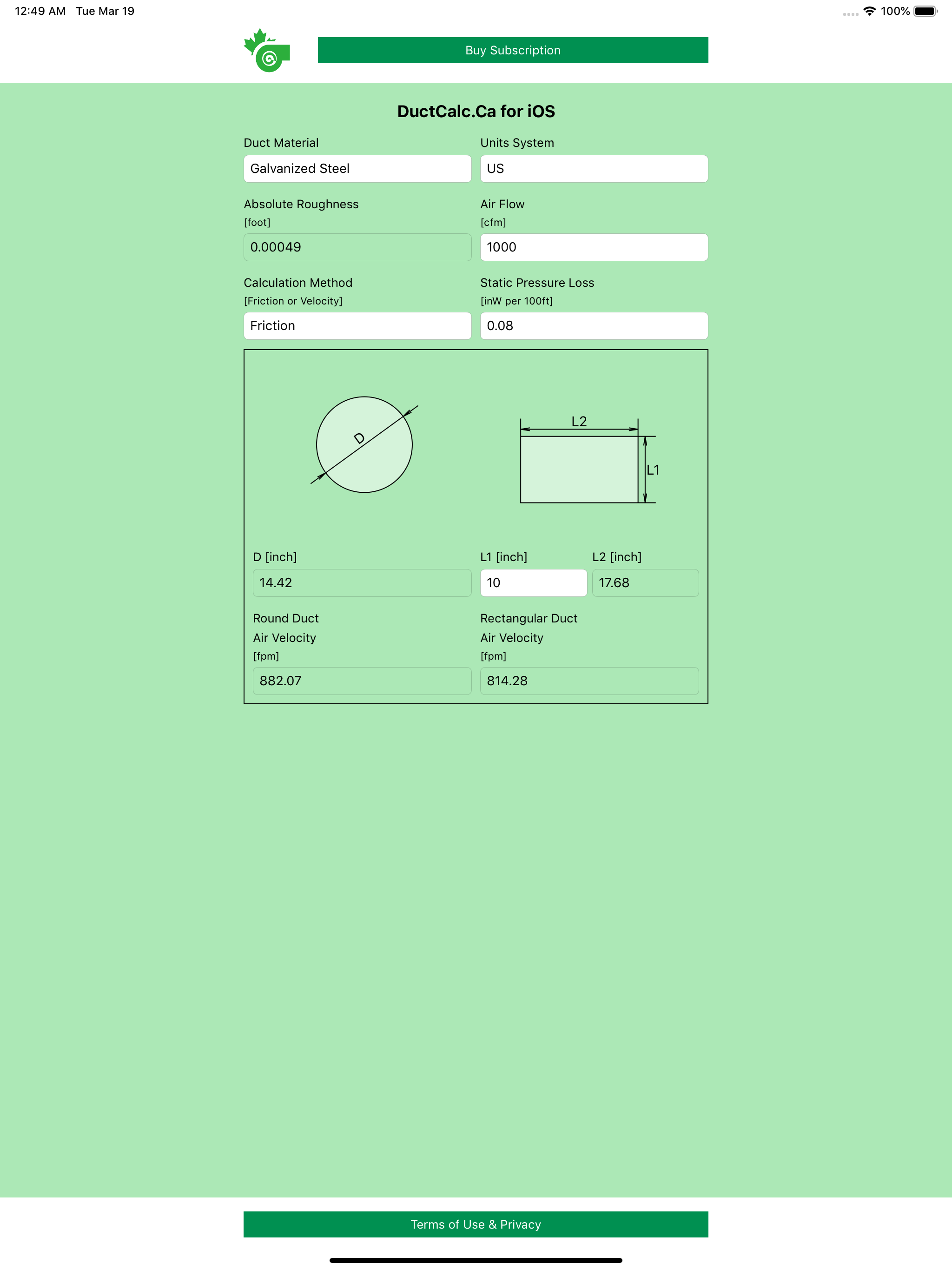

Equal Friction Method: Using a predefined static pressure loss per unit of duct length, DuctCalc.Ca Ductulator App calculates the diameter of round duct and the other dimension of rectangular duct. Based on the calculated dimensions, the air velocity will be calculated for both duct shapes and dimensions.

Velocity Method: Using a predefined air velocity, DuctCalc.Ca Ductulator App calculates the diameter of round duct and the other dimension of a rectangular duct. Based on the calculated dimensions, the static pressure loss will be calculated for both duct shapes and dimensions. Note that unlike conventional ductulators, this ductulator will calculate the dimensions of the rectangular duct based on the given velocity and it then calculates the static pressure loss for the rectangular duct based on the given velocity and dimensions. Most old calculators will only use the given velocity to calculate the diameter of the round duct then it calculates the static pressure loss for the round duct and uses that static pressure to calculate the rectangular duct dimensions which is not the case here for more precise velocity output.

Colebrook equation is used to solve for Darcy's friction factor and calculates the static pressure loss in the duct until it matches the desired input at defined airflow and absolute roughness of the inner material of the duct touching the moving air.

In-App Purchases:

• With no subscription the app will calculate for an air flow range between (950 and 1100 [cfm]). To activate full air flow functionality. There are four subscription options: one month, three months, six months and one year. • All subscription options will activate the "Full Air Flow Functionality" of the duct sizing app for that specific subscription period. The full air flow range is (1 to 500,000 [CFM] or 1 to 235,974 [L/s] in metric units). • Payment will be charged to iTunes Account at confirmation of purchase. • Any unused portion of a free trial period, if offered, will be forfeited when the user purchases a subscription to that publication, where applicable.
