Dusty Strings 16/15 Dulcimer

Easy to play and absolutely authentic sounding Hammered Dulcimer app for iPhone and iPad.

Demo Tune #2: "Eliza's Farewell"
(c) 2006, Judi Morningstar

Experience playing the full, lush tones of a Dusty Strings hammered dulcimer right on your iPhone or iPad.

Play on-screen or via MIDI from other apps or a MIDI keyboard.

The app provides the treble and bass bridges of the flagship D550 model for playing on screen and the full 3.75 octave chromatic range of the real instrument from G2 to E6 when played via MIDI.

The app has a 16/15 configuration with 16 string courses on the treble bridge and 15 courses on the bass bridge.

The D550 is one of the popular Chromatic Series models made by Dusty Strings, builders of hammered dulcimers in Seattle, WA since 1979.

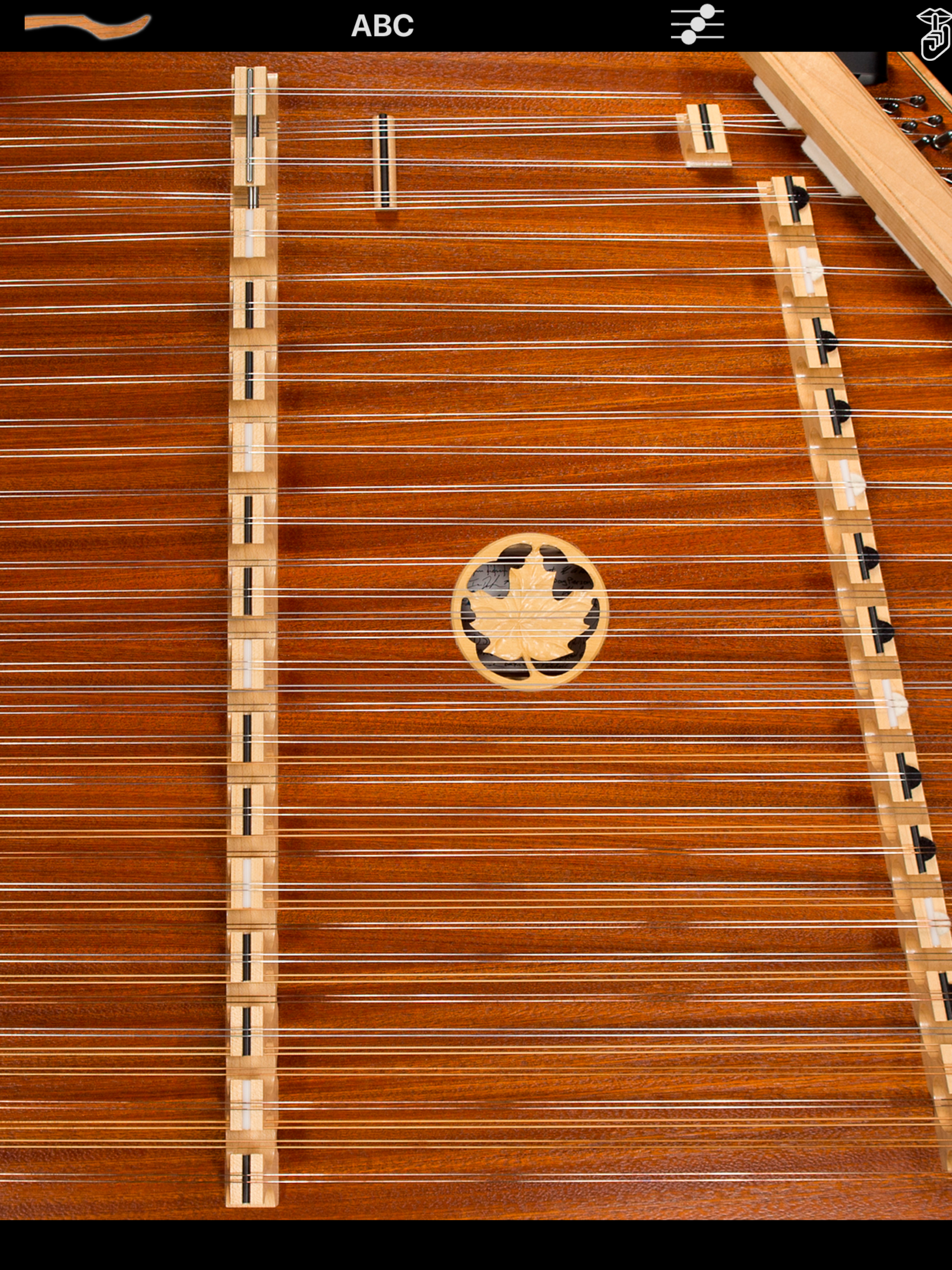

To play, just touch the strings next to the black and white bridge markers.

The Treble bridge (in the middle) has playable notes on either side, which are a fifth interval apart.

The Bass bridge (on the right) can be played to the left of the markers.

Toggle between a bright, clear ringing tone using hard hammers and a gentler, more piano tone using soft hammers by touching the image of the hammer in the upper left corner.

To get repeated note "drag roll" effects, drag quickly horizontally across the strings. The drag roll sensitivity can be set on the settings screen. The higher the sensitivity, the shorter distance you need to move your finger to get the effect.

Touch the "ABC" button to toggle the note name display on/off.

Touch the mixer icon to show the controls screen where you can adjust the balance and pan for the bass and treble bridges, enable or disable the drag rolls, as well as set the sensitivity for how far you need to drag to get the roll effect.

On the iPad version, the "Hammer Touches" setting chooses between no visible touches, visible touches, and visible touches + note label highlighting.

On the controls screen for the iPad version, you may use the "Soft Hammer Filter" control to choose between equalization of the soft hammer sounds for best sound through the iPad speaker or through headphones. The "iPad" setting optimizes the soft hammer equalization for playback through the iPad speaker. The "Headphones" setting optimizes the soft hammer sound equalization for headphones or for use when connected to an amplifier through the headphone jack. The "Headphones" setting allows the full fidelity of the lowest sound to pass through for best quality. iPhone devices default to the "Headphones" setting.

From the controls screen you can also visit the Dusty Strings website to learn more about their amazing hand-crafted instruments.

Touch the "Shhh" icon to quiet all the strings.

Instructions for use as a CoreMIDI Sound Module:

The app may be used as a MIDI sound module for use with CoreMIDI-enabled MIDI file player apps or controlled from an external MIDI keyboard using a hardware MIDI interface.

When played via MIDI the app has the full 3.75 octave chromatic range of the real D550 from G2 to E6.

Select the MIDI channel on the controls page.

When used via MIDI, the app responds to MIDI note-on (with velocity), note-off, and volume change messages on the selected MIDI channel.

The right treble bridge volume and panning is used for all MIDI sounds and will respond to MIDI volume messages.

To use with a MIDI file player app, such as “Sweet MIDI Player”, first launch the Dusty Strings 16/15” app, then your MIDI file player app. In MIDI file player settings you will find this app listed as “Dusty Strings 16/15” in their list of available CoreMIDI sound modules.

On the controls screen, be sure to set the MIDI channel of this app to match the output MIDI channel of the MIDI player track you wish to play.

iPad users - For the full D550 instrument playable on-screen, including the "SuperBass" bridge, please check out my standard "Dusty Strings" iPad app on the iPad App Store.
