SoundMeter X

SoundMeter X turns your iPhone or iPad into a handheld data-logging sound level meter (SLM), data-logging noise dosimeter, stereo signal generator, multi-channel data recorder, and real-time whole or 1/3 octave band spectrum analyzer (subscription or perpetual license required for most features--14-day free trial available).

Input signals can be acquired from any available audio input path. Sensitivity calibration can also be performed for any audio input device and/or input channel. Direct hardware support (automatic sensitivity calibration, based on factory-defined values) for The Modal Shop’s 2-channel 485B39 USB-ICP interface and miniDSP’s UMIK-1, UMIK-2, and EARS microphones.

In addition to real-time sound level measurements, SoundMeter can stream raw sound data to audio files, and store acquired sound level data, including date, time, and location, in CSV or TXT (tab-delimited) files, MAT-files, or high-resolution PDF images for later retrieval from your device.

SoundMeter may be downloaded for free from the App Store. Additional tools and features are offered via in-app purchase.

The SoundMeter Pro subscription includes:

• User-defined custom metadata in saved audio and data files

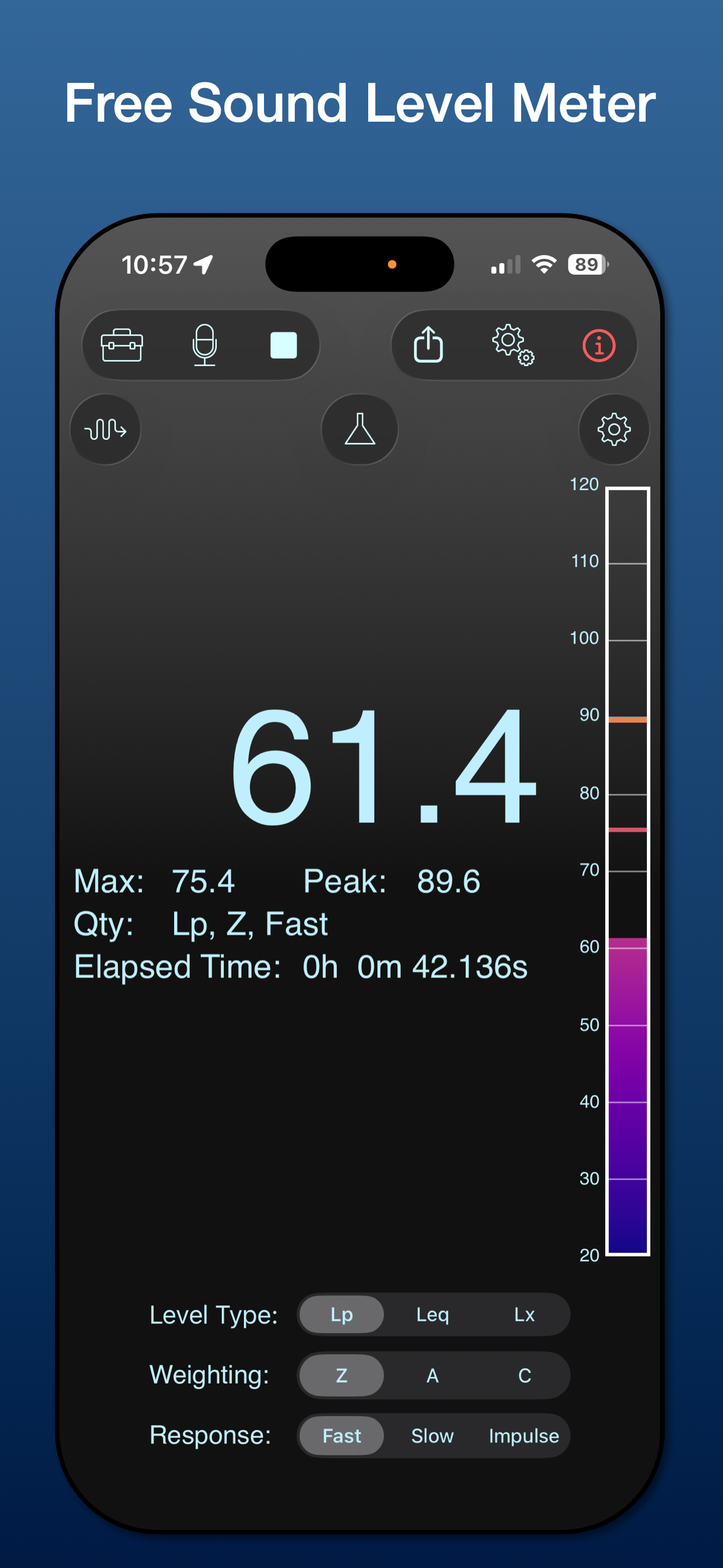

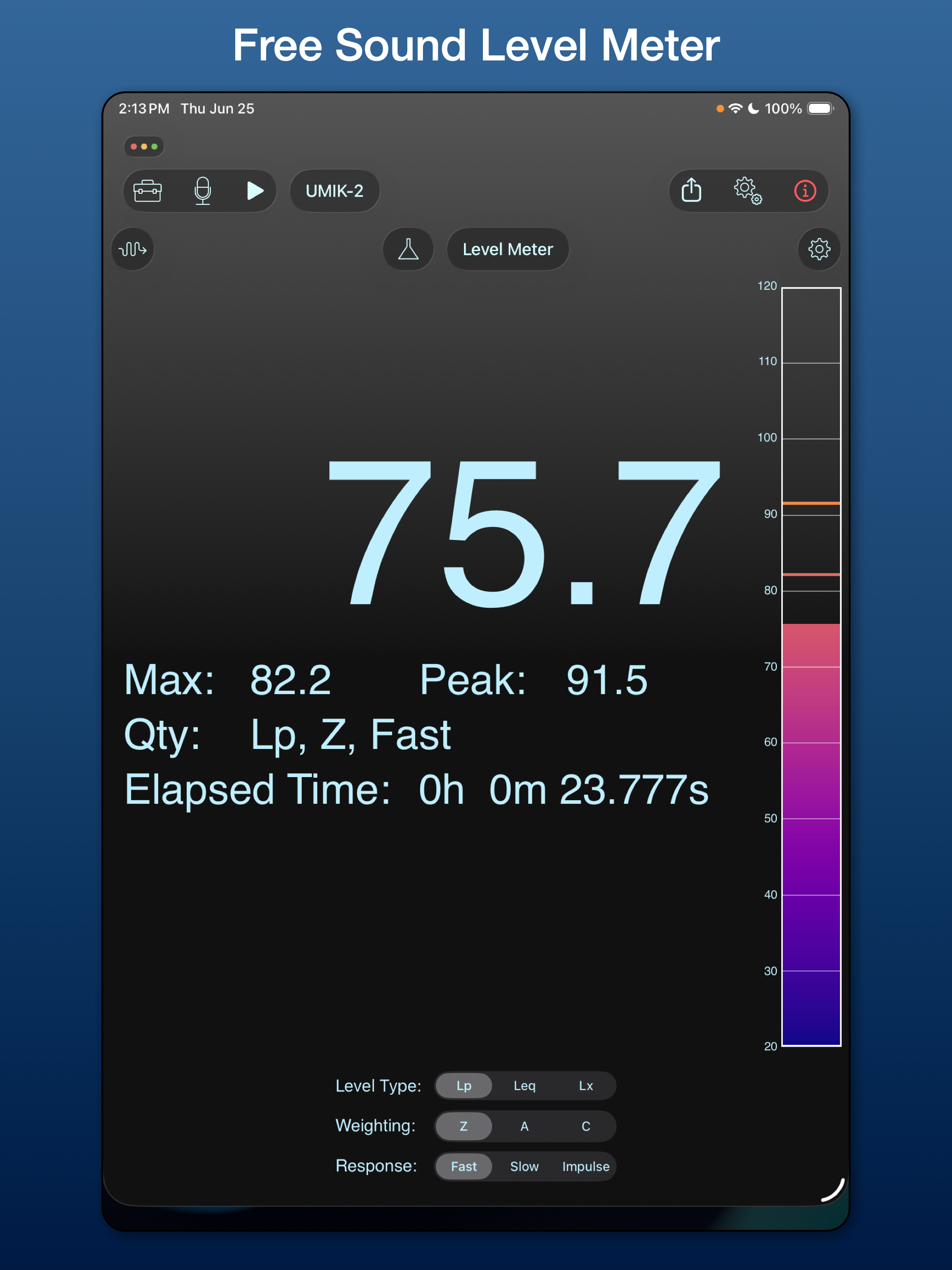

• Level MeterLp, Leq, Lx sound levels -- Standard Flat, A, C frequency weighting -- Standard Fast, Slow, Impulse time weighting -- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks. -- Event notifications
• Max Levels Meter -- Traffic-light-style meters make it easy to monitor 2 separate sound level thresholds in 2 independent user-defined frequency bands. -- Define lower (warning) and higher (limit) sound level thresholds for overall (full audio band) levels as well as for individual octave frequency bands. -- Store user-defined thresholds in files for later recall.
• Noise Dosimeter -- 8-hour Noise Dose, Projected Dose, TWA calculations -- Criterion Levels: 80, 85, 90 dB -- Exchange Rates: 3, 4, 5 dB -- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks.

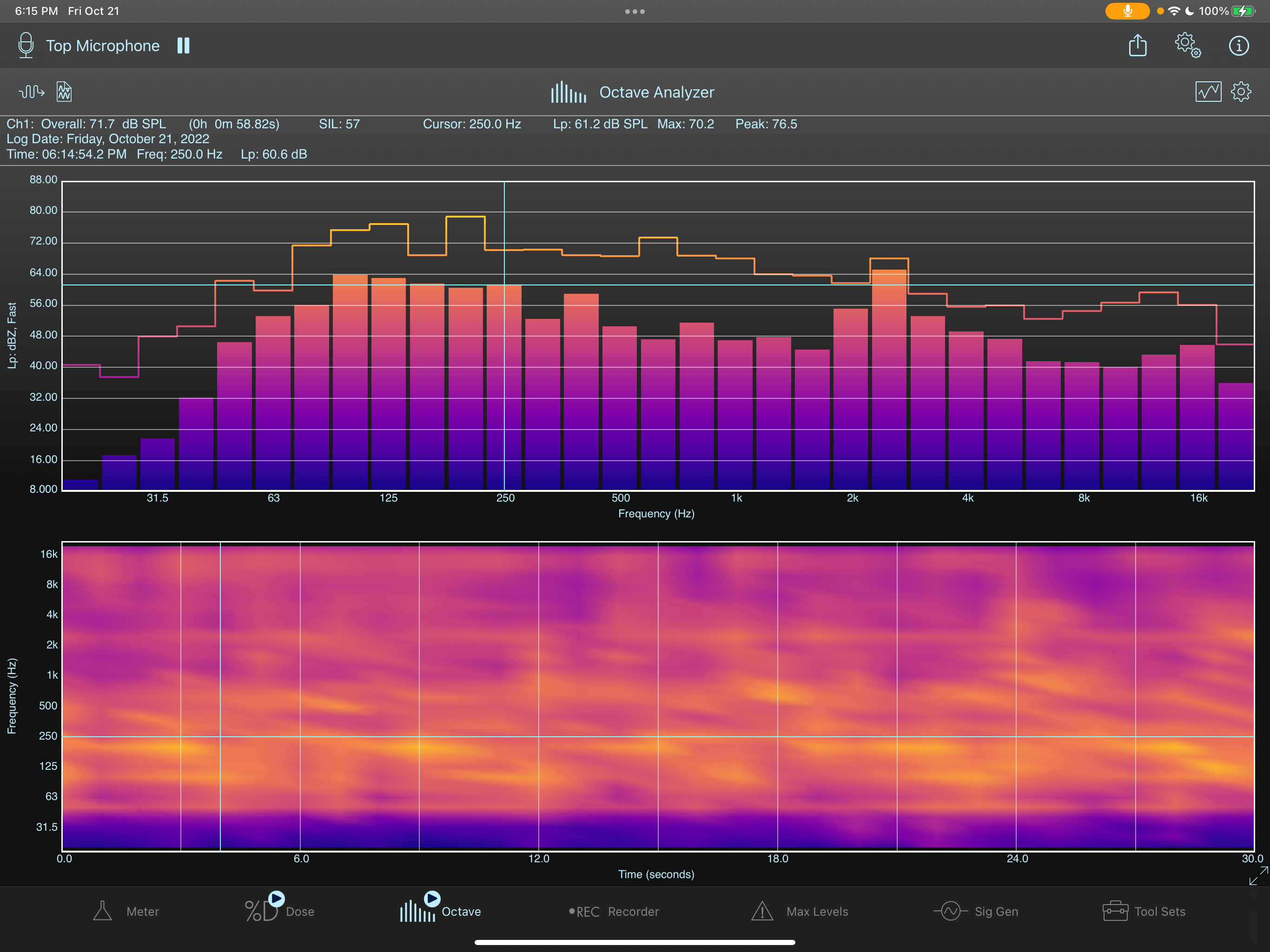

• Real-time Octave Spectrum Analyzer (RTA) -- Lp, Leq, Lx sound levels -- Supports whole or 1/3-octave frequency bands -- Standard Flat, A, C frequency weighting -- Standard Fast, Slow, Impulse time weighting -- NC, RNC, and NR references curves, NC, SIL, and NR values -- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks.
• Multi-channel Data Recorder -- Supports up to 8 channels -- Live monitoring of recorded data -- Metadata (including calibrated sensitivity) embedded in audio file (AIF, CAF, WAV), optionally saved in separate data file
• Stereo Signal Generator -- Left and right outputs assigned to arbitrary hardware output channels -- Random and pseudorandom (periodic) noise sequences with white or pink spectrum -- Linear and logarithmic frequency sweeps -- Dual periodic waveforms with arbitrary frequency and phase difference
• MultiTool -- Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)

The SignalScope X Pro Tool Set subscription can be shared between SoundMeter X and SignalScope X. It unlocks all tools and features of the SoundMeter Pro subscription in SoundMeter X and all tools and features of the Pro Tool Set subscription in SignalScope X (iCloud login required).

Learn more about SoundMeter X at FaberAcoustical.com.
