SignalScope X

SignalScope X offers a range of powerful measurement and analysis tools to enhance your productivity in areas such as acoustics (sound and vibration), audio, electronics, and electroacoustics.

SignalScope X includes a free oscilloscope tool. SignalScope X makes additional tools available via 3 tiers of subscription-based tool sets to meet your basic, advanced, and professional needs. Each subscription works on your iPhone, iPad, and Mac.

Features:

• Analyze signals coming from the Mac or iOS device’s current audio input device.
• Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
• Assign input channel units and sensitivities for individual USB Audio devices.
• Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.
• SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.
• Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).
• Manually switch between available audio input and output sources.
• Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
• Manually adjust audio sample rates, even up to 768 kHz, depending on hardware.
• Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.
• Save high-resolution analyzer display images to PDF files.
• Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device. Files may also be opened in other compatible apps (e.g. Mail, Notes, Numbers, Dropbox, etc).

Basic Tools:

• Oscilloscope

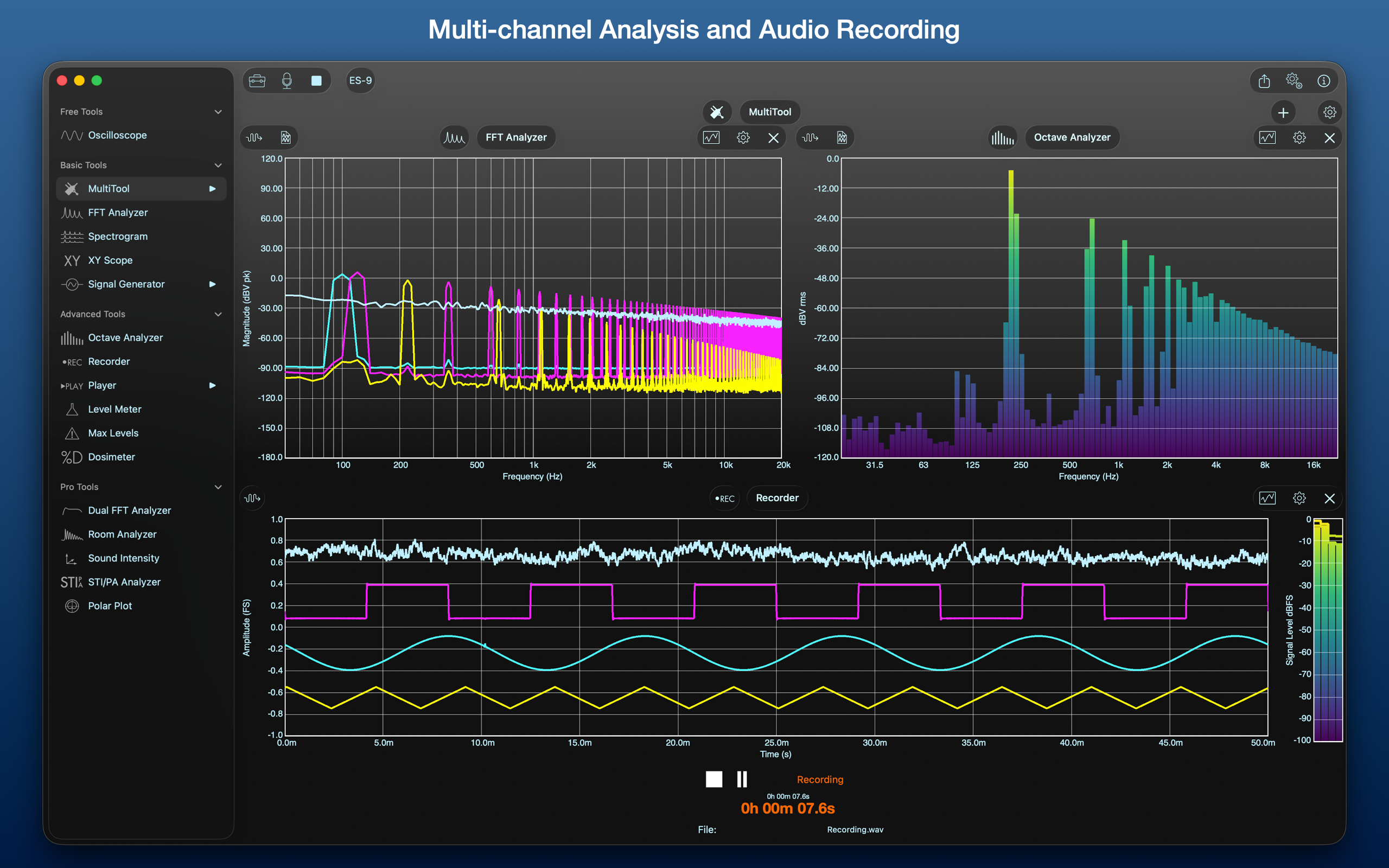

• MultiTool - Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)
• FFT Analyzer - Spectrum analyzer with user-settable frequency limits and input triggering
• 2D Real-time Spectrogram Analyzer
• XY Plotter - Create Lissajous curves or visualize your stereo mix
• Stereo Signal Generator

Advanced Tools: (Advanced Tool Set also includes basic tools)

• 3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data
• Octave-band Analyzer - Whole and 1/3-octave RTA
• Level Meter - Overall signal level meter
• Max Levels - Traffic-light-style monitoring
• Noise Dosimeter

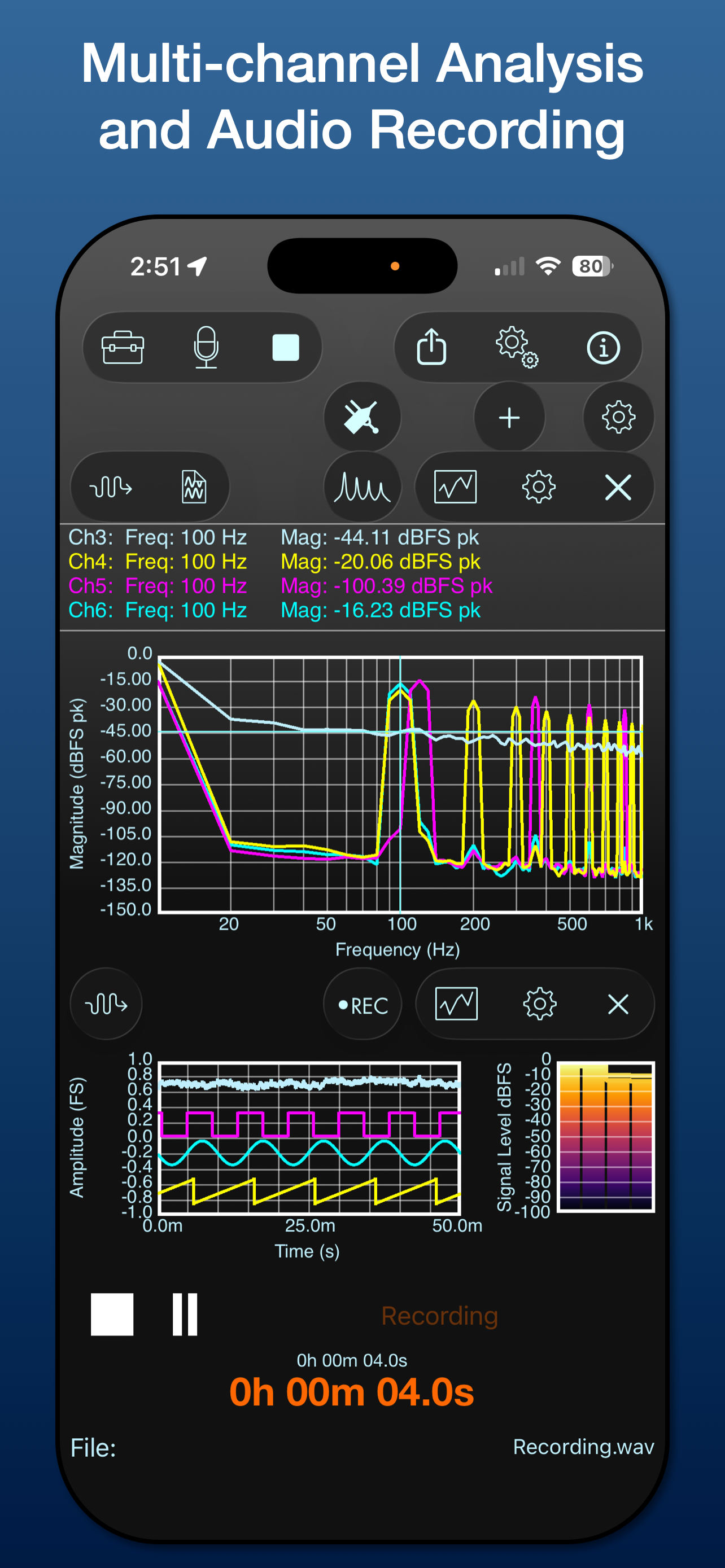

• Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files

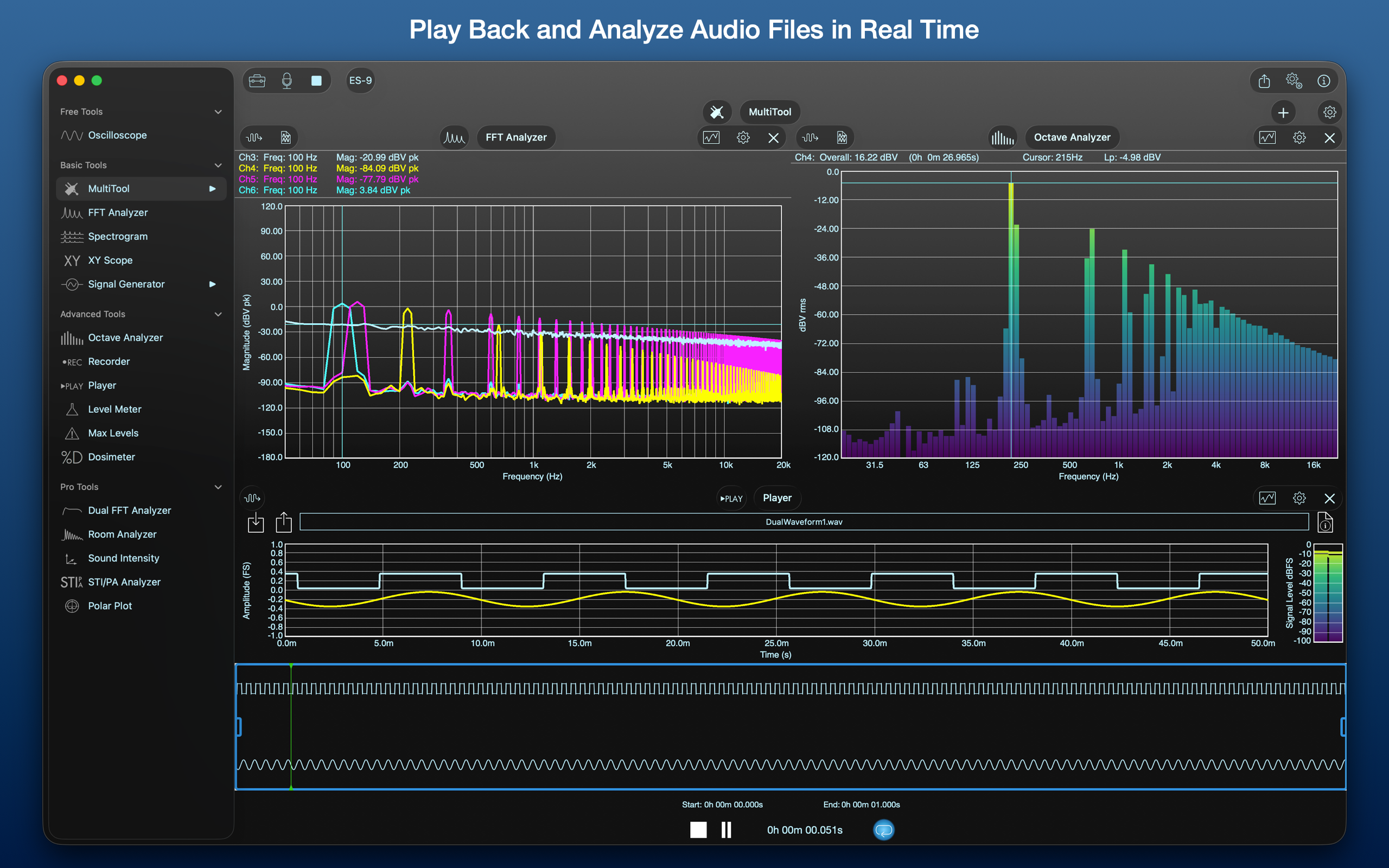

• Multi-channel Audio File Player - Analyze pre-recorded data

Pro Tools: (Pro Tool Set subscription includes all tools)

• Dual-channel System Analyzer (Dual FFT analysis with support for Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)
• Sound Intensity Analyzer - With a suitable p-p probe, measure sound intensity and acoustic particle velocity spectra (narrowband and whole or 1/3-octave bands) and time waveforms.
• Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)
• Polar Plot - Generate beautiful high-resolution plots of polar data.
• STI/PA Analyzer - Direct STI and STIPA measurements

Additional Pro Features:

• User-defined custom metadata in saved audio and data files
• Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
• Percentile exceeded sound levels in the Level Meter and Octave Analyzer
• NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
• Voltage decibel levels can be displayed in dBV or dBu
