Wire Gauge Charts - Size tables for AWG, SWG, BWG

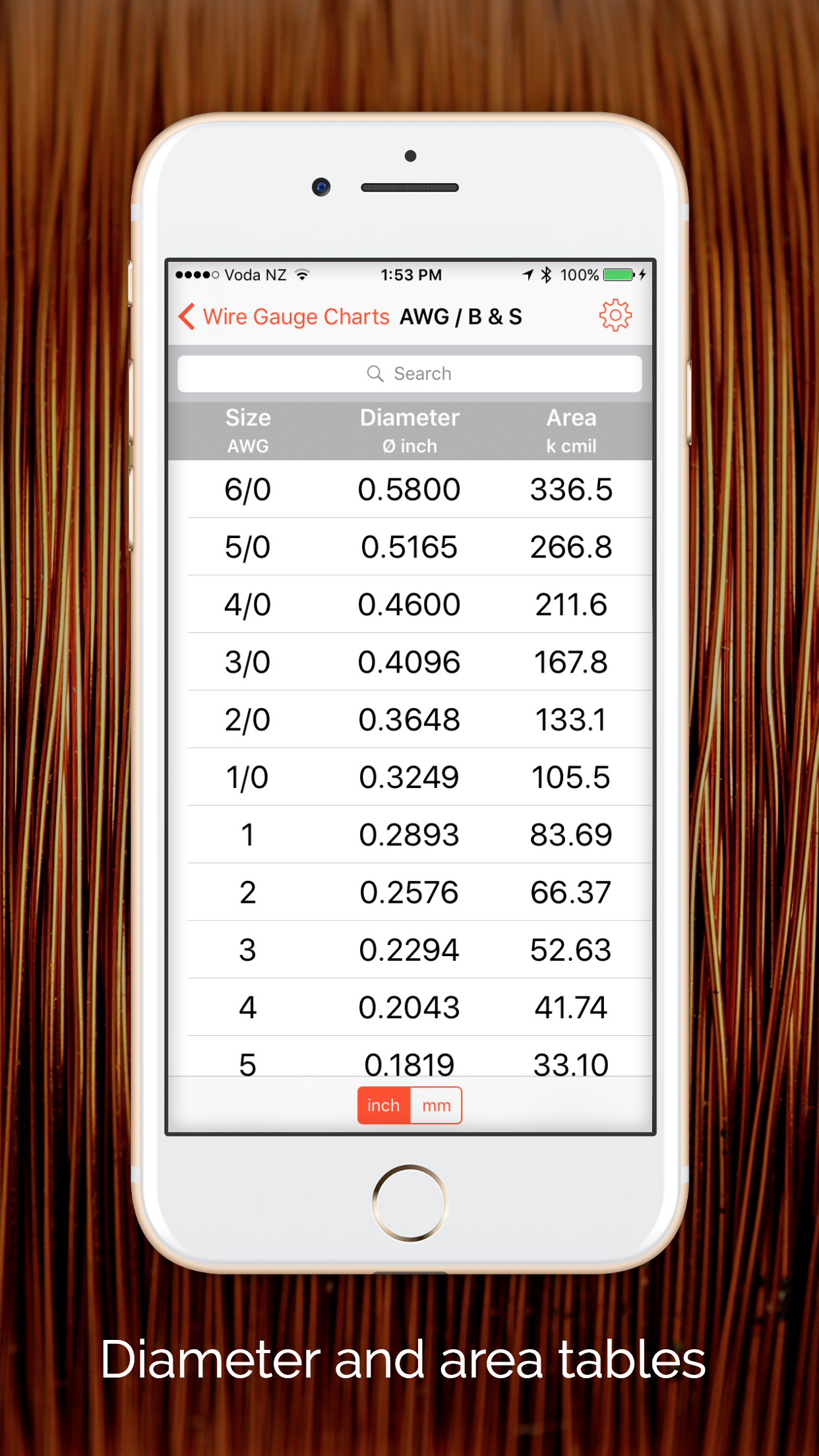

An easy-to-use set of charts giving diameter, area, resistance,and weight values of various wire gauge types. No typing required, just tap the required gauge type, and scroll through the chart to find your wire gauge.

Wire gauge types include: • AWG (American Wire Gauge) / B & S (Brown & Sharpe Wire Gauge) • SWG (Standard Wire Gauge) • BWG (Birmingham Wire Gauge) / Stubs Iron Wire • W&M (Washburn & Moen) / Steel Wire Gauge

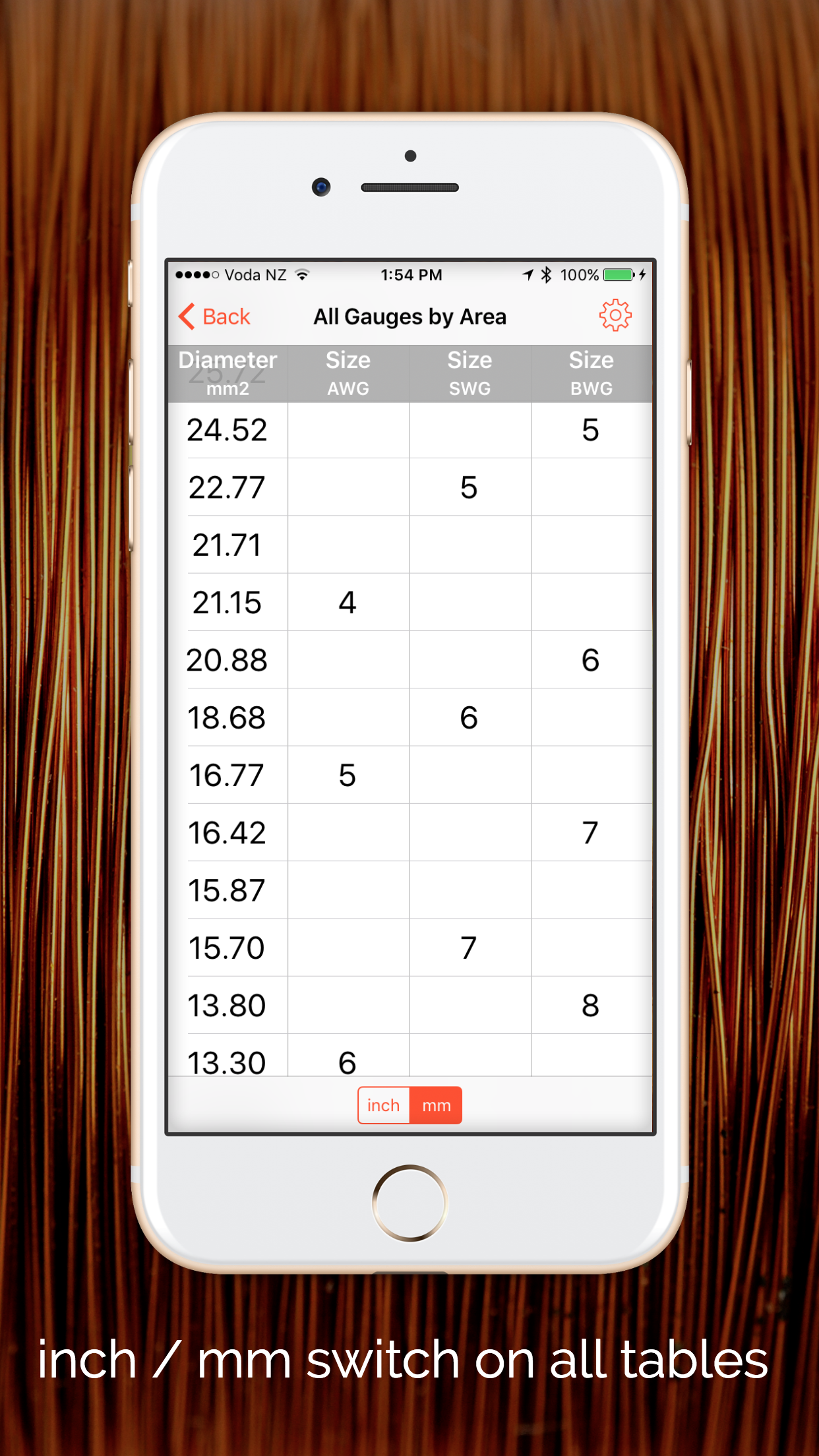

Comparison Tables: • Used to compare wires between the various size types. These tables are ordered by diameter and area.

Resistance and weight tables are given for wires: • Aluminum wire of American Wire Guage • Copper wire of American Wire Guage

General Features:

• Search Bar • If you prefer not to scroll, you can find what you're looking for with the search bar at the top of every table.

• All Device Orientations Supported • The app can be used in both landscape and portrait orientations, as well as upside-down.

• Universal App • This means you only need to buy it once to be able to install it on all your devices (iPhone, iPod Touch, and iPad).

If you find this app useful, please leave a review on the App Store.

If you have suggestions, feature requests, or need support, feel free to contact us through the Settings menu within our apps.
