Aeroscope

This is the companion app to Aeroscope, the portable wireless oscilloscope probe. It requires Aeroscope hardware for full functionality.

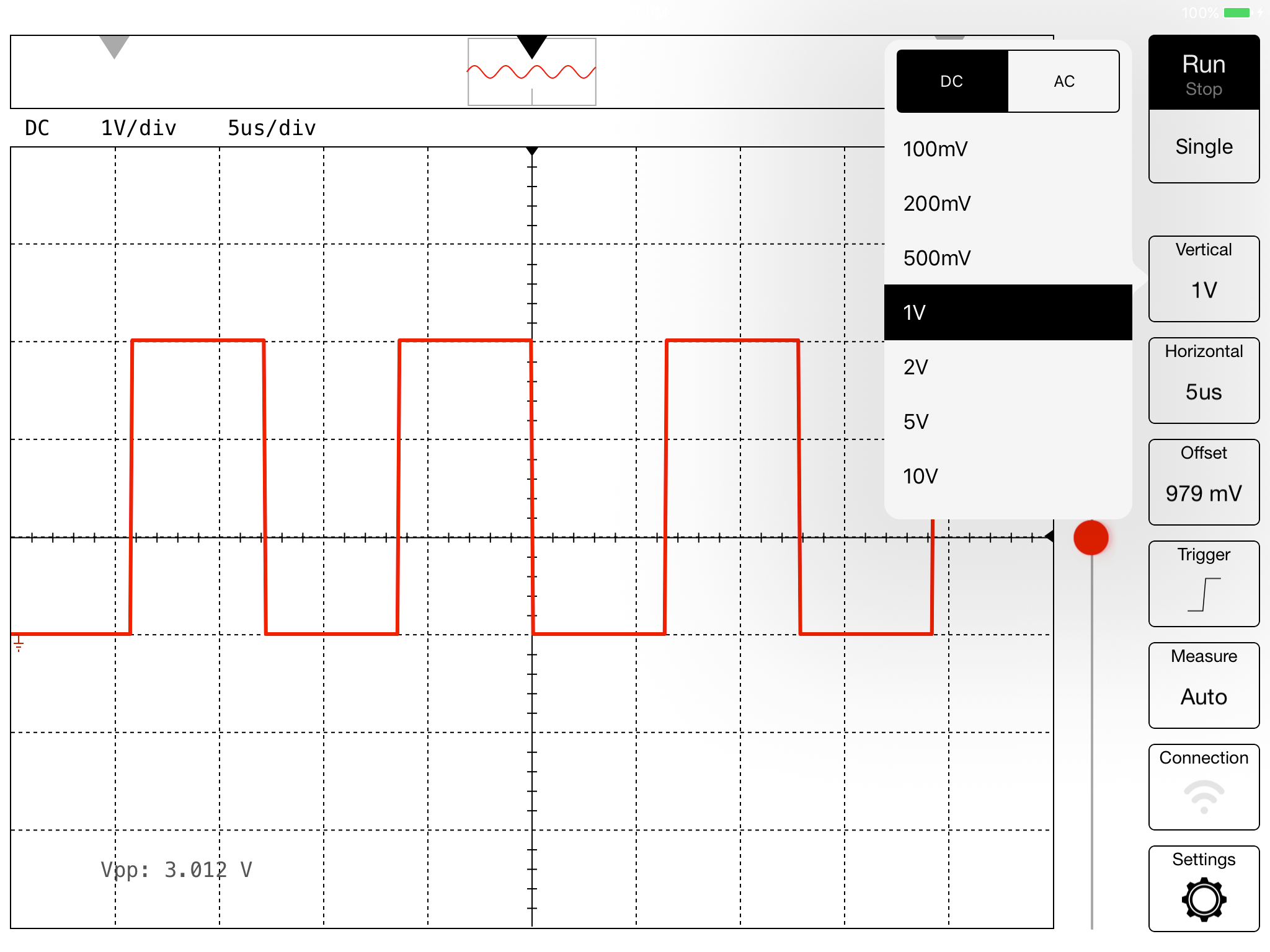

The Aeroscope App allows you to wirelessly connect to any Aeroscope oscilloscope probe over Bluetooth LE. Once connected, you can start and stop acquisition, change horizontal and vertical resolution, and plot acquired data.

Aeroscope Specs:

• Sample Rate: 100 MSPS
• Analog Bandwidth: 20 MHz
• Input Impedance: 1 Mohm || 17 pF
• Voltage Resolution: 100 mV/div - 10 V/div
• Measurable Input Voltage Range: +/- 40 V
• Maximum Rated Input Voltage: +/- 48 V
• Channels: 1
• Sample Resolution: 8 bits
• Memory Depth: 4k samples
• Wireless Protocol: Bluetooth LE (Bluetooth 4.0)
• Wireless Range: 100+ ft / 30+ m
