Ron StageMaster Monitoring

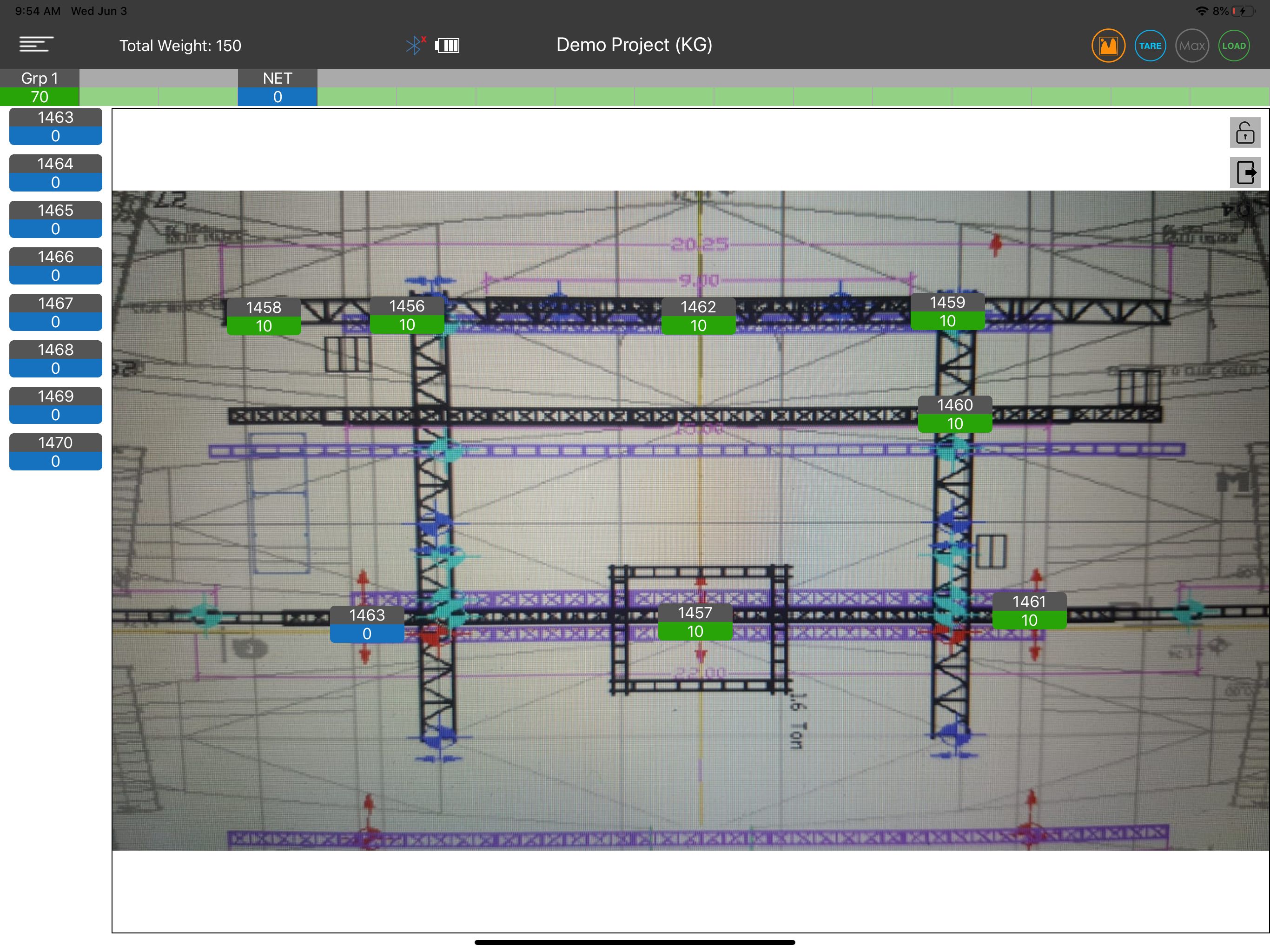

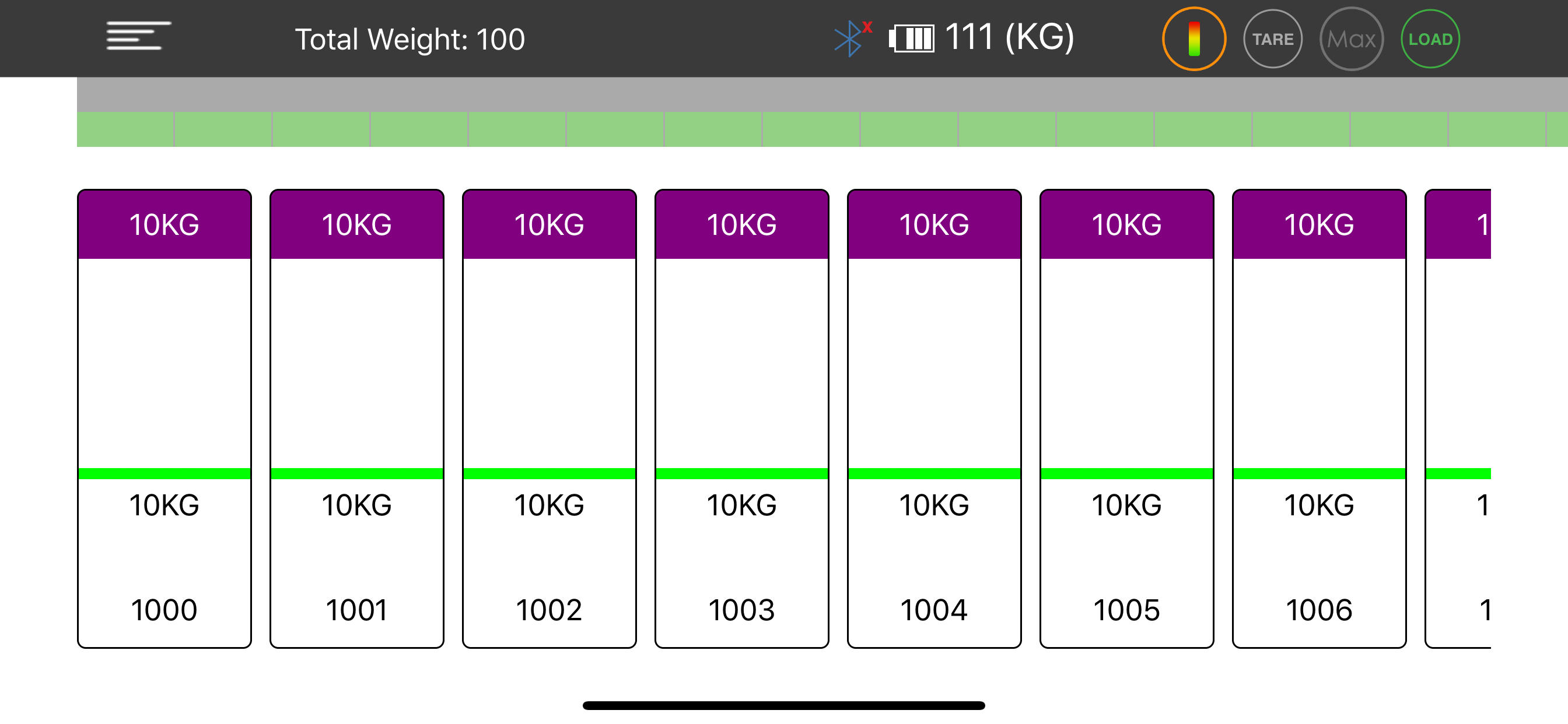

Ron StageMaster Load Monitoring system is a high quality, wireless, multi-point load monitoring system and overload prevention on stage. The system was developed by Eilon Engineering – a company who specializes in development of load monitoring systems with more than 40 years of experience - as a solution for the increasing need for load monitoring and overload prevention in the entertainment segment – stages, venues, convention centers, theaters and tours. The system is composed of Load Cells that measure the loads and update via RF a portable radio receiver (PRR ) which receives all the updates and send it via Bluetooth to the user's/operator IPhone or I Pad. On the display device (IPhone / I Pad) the loads can be displayed on a real time load map plan of the venue or as a list or as a bar graph display. The wireless load cells are independent, easy to install and constantly measuring and updating the measurement in real time, running on 4 AA batteries it is capable of working up to 5000 hours in a once a second update rate. The range of communication between the load cells and the PRR is up to 200 meters line of sight (with option to a longer range). The PRR is capable of receiving up to 40 load cells and updating the display device (IPhone / I Pad) once a second. The range between the PRR and the display device (IPhone / I Pad) is up to 200 meters line of sight, running on 2 AA batteries it is capable of working up to 40 hours, it can work also while connecting to the mains.
