PTBTX2™

STARTUP:

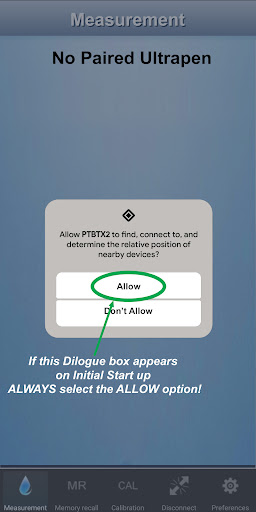

At initial startup, the PTBTx2 Ap will ask for permission to, “ … find, connect to and determine relative positions of nearby devices.”
ALWAYS select the “ALLOW” option!


REQUIRED EQUIPMENT:
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
Myron L® Company ULTRAPENX2™ (Second Generation Ultrapen)
Models: PTBT1; PTBT2, PTBT3, PTBT4, PTBT5 & PTBT6


INTRODUCTION
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
The PTBTX2™ App is a GUI and communication application that, when paired with one of Myron L® Company's ULTRAPENX2™ pocket testers, converts your ANDROID device into an accurate, reliable, fast and simple to use measurement and data storage device to use in diverse water quality applications.


ADVANCED FEATURES INCLUDE:
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
- Wireless communication between the tester and your ANDROID device means no bothersome wires to interfere with quickly moving from sample to sample and the paired mobile device can be held safely away from the liquid samples being measured.
- Intuitive GUI design for easily pairing, calibrating, measuring and recording measurements in the App on-board database.
- The database can be sorted, filtered and exported via your devices email App as either .xls; .xlsx, .csv formatted attachments
each PTBTX2™ pocket tester.


WORKS WITH ULTRAPENX2™ POCKET TESTERS
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
ULTRAPENX2™ PTBT1 – Measures Conductivity, Total Dissolved Solids (TDS), Salinity, and Temperature.
ULTRAPENX2™ PTBT2 – Measures pH and Temperature.
ULTRAPENX2™ PTBT3 – Measures Oxidation Reduction Potential (ORP) and Temperature.
ULTRAPENX2™ PTBT4 – Measures Free Chlorine Equivalent (FCE) and Temperature.
ULTRAPENX2™ PTBT4 – Measures Dissolved Oxygen (Concentration or Saturation) and Temperature.
ULTRAPENX2™ PTBT4 – Measures Nitrate Concentration (nitrate as nitrogen) and Temperature.

The PTBT2 through the PTBT6 Include a sample and hold mode as well as a live measurements mode.
Future ULTRAPENX2™ pocket testers will include measurement of Free Chlorine, Dissolved Oxygen and Nitrate.
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
Myron L® is a registered trademark of the Myron L® Company, 2450 Impala Drive, Carlsbad CA, 92010-7226
Bluetooth® is a registered trademark of Bluetooth SIG
