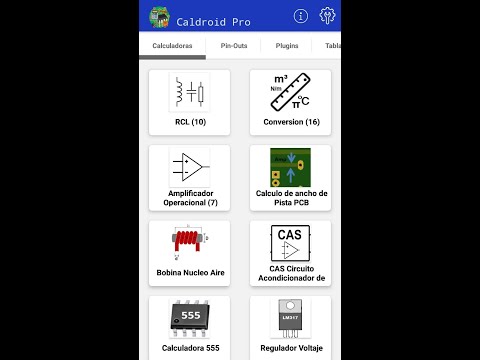

Caldroid Pro Calculadora Inge

Caldroid Pro helps students and enthusiasts build electronic circuits. It contains the most used calculation tools in this field and useful technical documentation for engineering students, electrical engineers and electronics lovers

Calculator for electronic engineering and electronics lovers. With their respective calculation equations.
The application includes
Calculators:
• Resistor color code decoder (3-6 bands);
• Search for color code of required resistance
• SMD resistor code decoder
• Search for SMD resistor codes from a Value
• Calculation of OHM Law
• Decoder for color code of Inductors (4-5 bands);
• Inductor color code search required
• Decoder for condenser color code
• Condenser code search from a Value
• Series / Parallel of (Inductors, Capacitors and Resistance) of n Values
• Capacitive and Inductive Reactance
• RLC Series / Parallel Resonance
• Resistive Voltage Divider
• Resistive Current Divider
• Transformation Y to Delta and Vice versa
• Conversion between numerical scales (K, M, m etc)
• Conversion between numerical Bases (2,4,8,10,16)
• Conversion of Units in the International System
-Pressure, Data Size, Area, Length, Volume
-Angle, Magnetic Flow, Magnetic Field
-Masa, Energy, Time, Frequency, Speed
-Temperature
• Internal and external PCB Track Width
• Design of CAS signal conditioning circuit, with Operational Amplifier, Shows final circuit to be implemented.
• Circuit 555 (Frequency, Useful Cycle, Monostable and Stable)
• Voltage Regulator Resistor (Lm317, LM1117, LM137, LM337, Precision Regulator Tl431, MIC29302)
• Operational Amplifiers (non-Inverter, Inverter, Instrumenter, Follower, Derivator, Integrator, Triangular Oscillator)
• Low Frequency Transformer Design (Wire Weight Calculation, Transformation Ratio, Transformer Section E and Toroidal)
• Complex Power Calculation (AC, DC, Three Phase, Power Factor, Power: Active, reactive, Apparent)
• Analysis of BJT transistors (PDT polarization, Maximum output excursion, Fixed Polarization, Collector feedback, work point graph Q)
• Analysis of decremental and incremental FET and MOSFET transistors in different configurations (Fixed Polarization, Auto-polarization, by PDT voltage divider) with and without drain resistor.
• Analysis and Design of Approximate and Real Zener Regulators
• Analog to digital conversion
• resistors for LEDs of different colors and series.

Pin-out:
-Arduino Uno, Leonardo, 101, Micro, Nano, Pro mini, Mega 2560
-Display LCD 2x16, 4x20 Lm016,
-Display 7 segments Common anode and cathode
-7X5 and 8X8 Led Matrix
-Regulators: Lm78xx, Lm79xx, Lm1117, Lm317, Lm338, Lm137
-Esp-01, ESP-07, ESP-12E, ESP-12F, ESP32, ESP32 Wrover, ESP32 Pico kit, Wemos D1 Mini
-MAC connectors (power supply and mac safe)
-ATX connector, Dell power
-STM32F103xx, STM32F303, STM32F407VET6
-Opam LM324, 741, TL081, TL082, Lm358, LM311, LM339, LM380, Lm386
-Bluetooth HC-05, HC-06
-Motor Nema 17
-RJ-45 connector
Table and Data
-Electronic concepts dictionary
-Electronic symbols
- CMOS, TTL, LVTTL, LVCMOS voltages
-Color table and resistor bands
-Typical Capacitor Values
-Typical Inductor Values
- Table OHM Law
-International System Units
- Size of encapsulated SMD Capacitors
- SMD Resistor Code Analysis
- Size of encapsulated SMD Resistors

Plugins
-TCP / IP client
-Bluetooth Serial
-PIC, AVR, STM Microcontroller Data Base

If you liked this program, please rate it.

For FAQ (Frequently Asked Questions) and the complete changeLog (changelog between versions), visit https://caldroid.blogspot.com/
