Alignment Tracking

KMZ, GPX, DXF → Station, offset, elev.; DXF → GPX

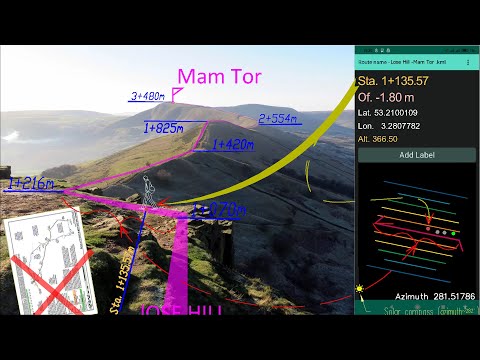

Get rid of the hassle of traditional maps and bulky GPS devices. With Alignment Tracking, you’ll always be on the right path, saving time and battery life. The app helps you determine your location relative to the loaded KML/KMZ/DXF route, dynamically displaying the distance from the start and deviations left/right from the path.

Key Benefits:
• New Positioning: Determine your location and deviations relative to the route (Station, offset, elev.)
• Progress Tracking: Know how much of the route you've completed and how much is left, shown as a percentage.
• Save POIs: Save important points of interest in TXT format along the way.
• Energy Saving: Lower power consumption compared to traditional navigation apps.
• 2D and 3D Modes: 3D mode displays inclined distance/depth.
• Auto Data Save: Automatically saves data in the Downloads folder in case of an unexpected shutdown.
• Solar and moon compass (determines the direction based on the position of the Sun and/or Moon, which makes it immune to magnetic interference (near power lines, metal objects, in areas of magnetic anomalies or during electronic warfare).
The magnetic compass loses accuracy near the poles (where the magnetic declination can reach tens of degrees), while the solar/lunar compass maintains stable operation anywhere where sunlight or the lunar disk is visible)

Alternative Uses:
• Creating road defect lists.
• Identifying underground utilities.
• Tracking route progress for airplane or train passengers.
Just upload a KML file into the app and start your journey, even if it spans thousands of kilometers. Prepare your KML file with Google Maps or other programs and rely on the app's intuitive interface.

Additional Features:
• Option to display data in feet.
• Starting Station (Changes the station value that is assigned to the beginning of the first alignment entity created).
• Share TXT file.

Alignment Tracking — your reliable travel companion. Simplify and enhance your movements with our app!

Download Alignment Tracking and make your journeys simpler and more convenient!

txt export:
Station Offset Elevation Description Lat Lon Time
2092.76,3.96,165.00,ElP,52.7,23.7,Thu May 09 17:17:19

It is possible to switch the display of data in feet (possible only before recording the first point)
Starting Station(Specifies the station value that is assigned to the beginning of the first alignment entity created)

2D mode- height-free when importing from a KML file. Alignment runs at ground zero (sea level, Horizontal distance)
For Alignment up to 40 km long Lat/Lon(MAX-MIN)∠40 km , the error in picketing increases greatly after 40 km
3D mode - taking into account the height specified in the KML file and for extended routes. The 2500 km long highway consisting of 35,000 points was opened by the application in 6 seconds.
Only in this mode is Slope distance display available

a detailed description of all the features of the application can be found at the link https://stadiamark.almagest.name/Alignment-Tracking-manual/
DXF → GPX - https://www.stadiamark.com/DXF-to-GPX/ - manual
KML routes for application testing (https://stadiamark.com/routes_by_highways/ - or select OPEN Files in the application menu.
